Decompiled Java Code Manipulation using JEB API – Part 3: Defeating Reflection

This is the third and final part of our series of blogs showing how to use JEB’s API to manipulate decompiled Java syntax trees. (See Part 1, Part 2.)

Today, we will show how to leverage the API to defeat the main obfuscation scheme used to protect the infamous OBad trojan: generalized reflection.

Want a visual TL;DR? Have a look at the following demo video.

Download the scripts: 1, 2, 3
Demo video

Reflection is a powerful feature used by interpreted languages to query information about what is currently loaded and executed by the virtual machine. Using reflection, a program can find references to classes and items within classes, and act on those items, for example, execute methods.

Example:

java.lang.System.exit(3);

can be rewritten to:

java.lang.Class.forName("java.lang.System")
        .getMethod("exit", Integer.TYPE).invoke(null, 3);

Combined with string encryption, reflection can seriously bloat and obscure a program, slowing down the reverse-engineering process.

Based on the above code example, it appears that a solution to remove reflection code automatically or semi-automatically is both useful and realistic. Let’s see how we can to achieve this goal using JEB’s AST API.

As said in the introduction, consider the Android trojan OBad. The video shows the use of a preliminary script to decrypt the scripts. Refer to the script ObadDecrypt.py linked above; we won’t cover the details of string decryption here, as they have been covered in a previous blog.

After string decryption, OclIIOlC.onCreate looks like the following piece of Java code:

    protected void onCreate(Bundle arg9) {
        Object v1_2;
        Object v9;
        super.onCreate(arg9);
        if(Class.forName("android.os.Build").getField("MODEL").get(null).equals(new String(CIOIIolc.IoOoOIOI(CIOIIolc.cOIcOOo(IoOoOIOI.cOIcOOo("cmA4"), CIOIIolc.cOIcOOo("ÞÜëÇØÚâØÞÜÄØåØÞÜéê×èêÉÛè".getBytes())))))) {
            System.exit(0);
        }

        Context v0 = OcooIclc.cOIcOOo;
        Class v2 = MainService.class;
        try {
            v9 = Class.forName("android.content.Intent").getDeclaredConstructor(Class.forName("android.content.Context"), Class.class).newInstance(v0, v2);
        }
        catch(Throwable v0_1) {
            throw v0_1.getCause();
        }

        try {
            Class.forName("android.content.Intent").getMethod("addFlags", Integer.TYPE).invoke(v9, Integer.valueOf(268435456));
        }
        catch(Throwable v0_1) {
            throw v0_1.getCause();
        }

        Context v1_1 = OcooIclc.cOIcOOo;
        try {
            Class.forName("android.content.Context").getMethod("startService", Class.forName("android.content.Intent")).invoke(v1_1, v9);
        }
        catch(Throwable v0_1) {
            throw v0_1.getCause();
        }

        v1_1 = this.getApplicationContext();
        try {
            v1_2 = Class.forName("android.content.Context").getMethod("getPackageManager", null).invoke(v1_1, null);
        }
        catch(Throwable v0_1) {
            throw v0_1.getCause();
        }

        ComponentName v0_2 = this.getComponentName();
        try {
            Class.forName("android.content.pm.PackageManager").getMethod("setComponentEnabledSetting", Class.forName("android.content.ComponentName"), Integer.TYPE, Integer.TYPE).invoke(v1_2, v0_2, Integer.valueOf(2), Integer.valueOf(1));
        }
        catch(Throwable v0_1) {
            throw v0_1.getCause();
        }

        this.finish();
    }

Let’s remove reflection. The steps are:

  1. Recursively walk the AST and check the statements
    Note: we could enumerate all elements instead, however, the script is intended as a demo, not an exhaustive solution to this problem
  2. Look for Call statements (eg, foo()), or Assignments whose right part is a Call (eg, r = bar())
  3. Check if the Call matches the following nested Call pattern:
    Class.forName(…).getMethod(…).invoke(…)
    Note: the script does not take care of class instantiation or field access through reflection, for the same reasons stated above.
  4. Extract the reflection information:
    1. Fully-qualified name of the class
    2. Method name and prototype
    3. Invocation arguments
  5. Create a new method, register it to the DEX object
  6. Create a Call element that accurately mirrors the reflection calls
    Note: There are limitations, especially considering the return type
  7. Finally, replace the reflection call by the direct method call

A deobfuscated / “unreflected” version of the source code above looks like:

    protected void onCreate(Bundle arg9) {
        // ...
        // ...

        try {
            v9.addFlags(Integer.valueOf(268435456));
        }
        catch(Throwable v0_1) {
            throw v0_1.getCause();
        }

        Context v1_1 = OcooIclc.cOIcOOo;
        try {
            v1_1.startService(v9);
        }
        catch(Throwable v0_1) {
            throw v0_1.getCause();
        }

        v1_1 = this.getApplicationContext();
        try {
            v1_2 = v1_1.getPackageManager();
        }
        catch(Throwable v0_1) {
            throw v0_1.getCause();
        }

        ComponentName v0_2 = this.getComponentName();
        try {
            v1_2.setComponentEnabledSetting(v0_2, Integer.valueOf(2),
                    Integer.valueOf(1));
        }
        catch(Throwable v0_1) {
            throw v0_1.getCause();
        }

        this.finish();
    }

We can now remove the try-catchall. This is what the third script is doing.

At this stage, the value and potential of the AST API package should have been clearly demonstrated. We encourage users of JEB to experiment with it, tweak our sample scripts, create their own, and eventually contribute by sending us their useful deobfuscation and/or optimization scripts. We will be happy to make them available to our user base through the Resources page.

Decompiled Java Code Manipulation using JEB API – Part 2: Decrypting Strings

This is part 2 of our series of blogs showing how to use JEB’s API to manipulate decompiled Java syntax trees. (Missed Part 1?)

Let’s see how the API can be leveraged to decrypt strings, and plug the decrypted strings back into the source code.

Download the script
Demo video

As shown in the video, we are going to focus on a protected version of Cyanide. The strings are encrypted, and that the decompiled Java code does not look pretty:

    ...
    protected void onCreate(Bundle arg5) {
        super.onCreate(arg5);
        this.setContentView(2130903040);
        if(new File(MainActivity.鷭(-387, -15, 608)).exists()) {
            MainActivity.鷭(MainActivity.鷭(-389, 52, 159));
            MainActivity.鷭(MainActivity.鷭(-333, 37, 17));
            MainActivity.鷭(MainActivity.鷭(-407, 53, 629),
                    MainActivity.鷭(-395, -15, 0), this);
            MainActivity.鷭(MainActivity.鷭(-398, 53, 92),
                    MainActivity.鷭(-386, -15, 586), this);
            MainActivity.鷭(MainActivity.鷭(-402, 52, 102),
                    MainActivity.鷭(-378, -15, 665), this);
            MainActivity.鷭(MainActivity.鷭(-368, 37, 119));
            MainActivity.鷭(this);
            return;
        }

        ...
        ...

MainActivity.鷭(x, y, z) is the decryptor method. The parameters indirectly reference a static array of bytes, that contains the encrypted strings for the class.

Our script is going to do the following:

  1. Search the encrypted byte array
    1. Enumerate the fields of the class
    2. Look for a byte[] field marked private static final
    3. Verify that this field is referenced in <clinit>, the static {…} initializer for the class
    4. The field should also be referenced in another method: the decryptor
  2. Check the structure of <clinit>
    1. It should look like: encrypted_strings = new byte[]{………}
    2. Retrieve the encrypted bytes
  3. The decryptor was analyzed in a previous blog post
    1. The decryptor constants need to be extracted manually (let’s keep the script simple)
  4. Then, for every method of the class, we will:
    1. Enumerate the statements and sub-elements of the AST recursively
    2. Look for Call elements
    3. If the Call matches the decryptor method, we extract the argument provided to the Call
    4. We use these arguments to decrypt the string
    5. Finally, we replace the Call by a newly created Constant element that represent the decrypted string

(Note: The JEB python script is just a little over 100 lines, and took less than 1 hour to write. It could be greatly improved, for instance, the decryptor constants could be found programmatically, but this added complexity is out of the scope of this introductory blog post.)

Here what the deobfuscated code snippet looks like:

    ...
    protected void onCreate(Bundle arg5) {
        super.onCreate(arg5);
        this.setContentView(2130903040);
        if(new File("/data/last_alog/onboot").exists()) {
            MainActivity.鷭("rm /data/last_alog/*");
            MainActivity.鷭("cat /system/etc/install-recovery.sh > /system/etc/install-recovery.sh.backup");
            MainActivity.鷭("su", "/system/etc/su", this);
            MainActivity.鷭("supersu.apk", "/system/etc/supersu.apk", this);
            MainActivity.鷭("root.sh", "/system/etc/install-recovery.sh", this);
            MainActivity.鷭("chmod 755 /system/etc/install-recovery.sh");
            MainActivity.鷭(this);
            return;
        }
        ...
        ...

In part 3, we will show how to defeat a complex obfuscation scheme used by many bytecode protectors: reflection.

Decompiled Java Code Manipulation using JEB API – Part 1: Removing Junk Code

This is the first post of a 3-part blogs series that will demonstrate the new features of JEB’s jeb.api.ast API package.

Classes of this package allow read and write access on the Abstract Syntax Trees (AST) of the decompiled Java code produced by JEB. In a  nutshell, it allows power users to implement complex deobfuscation schemes or their own optimizations strategies.

Download the script
Demo video

Let’s jump straight to the crux of the matter: this piece of code has been obfuscating by a well-known Android/Java protector software:

/*.method public constructor (Context, AttributeSet, I)V
          .registers 8
          const/4                 v3, 0x1
          const/4                 v2, 0x0
          invoke-direct           View-&amp;amp;gt;(Context, AttributeSet, I)V, p0, p1, p2, p3
          new-instance            v0, Paint
:E
          packed-switch           v3, :90
:14
          packed-switch           v2, :A0
:1A
          goto                    :14
:1C
          invoke-direct           Paint-&amp;amp;gt;()V, v0
          iput-object             v0, p0, TileView-&amp;amp;gt;b0431бб0431б0431:Paint
:26
          packed-switch           v2, :B0
:2C
          packed-switch           v2, :C0
:32
          goto                    :2C
:34
          sget-object             v0, xxxkkk$xkkxkk-&amp;amp;gt;b04310431б0431б0431:[I
          invoke-virtual          Context-&amp;amp;gt;obtainStyledAttributes(AttributeSet, [I)TypedArray, p1, p2, v0
          move-result-object      v0
          const/16                v1, 0xC
          invoke-virtual          TypedArray-&amp;amp;gt;getInt(I, I)I, v0, v2, v1
          move-result             v1
:4C
          packed-switch           v2, : D0
:52
          packed-switch           v2, :E0
:58
          goto                    :52
:5A
          packed-switch           v2, :F0
:60
          packed-switch           v3, :FC
:66
          packed-switch           v3, :10C
:6C
          goto                    :66
:6E
          packed-switch           v2, :11C
:74
          packed-switch           v3, :12C
:7A
          goto                    :74
:7C
          packed-switch           v2, :13C
:82
          sput                    v1, TileView-&amp;amp;gt;bб0431ббб0431:I
          invoke-virtual          TypedArray-&amp;amp;gt;recycle()V, v0
          return-void
          .packed-switch 0x0
              :E
              :1C
          .end packed-switch
          .packed-switch 0x0
              :1C
              :E
          .end packed-switch
          .packed-switch 0x0
              :34
              :26
          .end packed-switch
          .packed-switch 0x0
              :34
              :26
          .end packed-switch
          .packed-switch 0x0
              :5A
              :4C
          .end packed-switch
          .packed-switch 0x0
              :5A
              :4C
          .end packed-switch
          .packed-switch 0x0
              :60
          .end packed-switch
          .packed-switch 0x0
              :4C
              :6E
          .end packed-switch
          .packed-switch 0x0
              :4C
              :6E
          .end packed-switch
          .packed-switch 0x0
              :7C
              :4C
          .end packed-switch
          .packed-switch 0x0
              :4C
              :7C
          .end packed-switch
          .packed-switch 0x0
              :82
          .end packed-switch
.end method*/

JEB decompiles this Dalvik bytecode to the following Java code:

    public TileView(Context arg5, AttributeSet arg6, int arg7) {
        super(arg5, arg6, arg7);
    label_3:
        switch(1) {
            case 0: {
                goto label_3;
            }
            case 1: {
                goto label_6;
            }
        }

        while(true) {
            switch(0) {
                case 0: {
                    goto label_6;
                }
                case 1: {
                    goto label_3;
                }
            }
        }

    label_6:
        this.b0431бб0431б0431 = new Paint();
    label_8:
        switch(0) {
            case 0: {
                goto label_11;
            }
            case 1: {
                goto label_8;
            }
        }

        while(true) {
            switch(0) {
                case 0: {
                    goto label_11;
                }
                case 1: {
                    goto label_8;
                }
            }
        }

    label_11:
        TypedArray v0 = arg5.obtainStyledAttributes(arg6,
                xkkxkk.b04310431б0431б0431);
        int v1 = v0.getInt(0, 12);
    label_15:
        switch(0) {
            case 0: {
                goto label_18;
            }
            case 1: {
                goto label_15;
            }
        }

        while(true) {
            switch(0) {
                case 0: {
                    goto label_18;
                }
                case 1: {
                    goto label_15;
                }
            }
        }

    label_18:
        switch(1) {
            case 0: {
                goto label_15;
            }
            case 1: {
                goto label_21;
            }
        }

        while(true) {
            switch(1) {
                case 0: {
                    goto label_15;
                }
                case 1: {
                    goto label_21;
                }
            }
        }

    label_21:
        switch(0) {
            case 0: {
                goto label_24;
            }
            case 1: {
                goto label_15;
            }
        }

        while(true) {
            switch(1) {
                case 0: {
                    goto label_15;
                }
                case 1: {
                    goto label_24;
                }
            }
        }

    label_24:
        TileView.bб0431ббб0431 = v1;
        v0.recycle();
    }

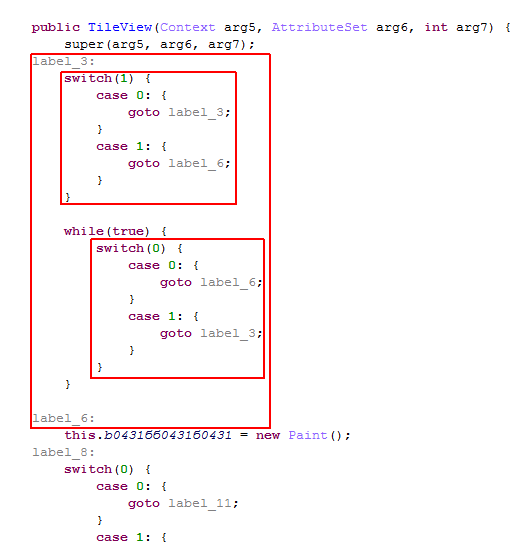

As one can see, dummy switches as well as pseudo-infinite loops have been inserted within the original Java code, in order to produce flow obfuscation. Using the AST API, we’re going to implement a JEB plugin that cleans the obfuscated code.

1

A dummy switch construct looks like the following:

switch(X) {
case X:
  goto next;
case Y:
  goto label_fake1:
case Z:
  goto label_fake2:
}
...
next:

The above piece of code is equivalent to:

goto next;
...
next:

Which can be reduced to a single label:

next:

In order to find the dummy switches, the JEB script is going to do the following:

  1. Recursively enumerate the statements of a method body, looking for SwitchStm elements
  2. Check that the switch is a dummy switch:
    1. The switched expression must be a Constant
    2. The case block associated with that constant must start with a Goto statement
  3. Replace the switch by the goto
  4. Find the first Label that follows the (now replaced) switch
  5. If a label is found, is at the same block level as the switch, and is the label pointed to by the goto that replaced the switch, then all the expressions between the goto and the label can be discarded
  6. Finally, apply standard JEB optimizations that remove the remaining useless gotos and labels

This algorithm fits in a less than a 100-line Python script. Download the script, experiment with it, and get accustomed to the API.

The cleaned-up code is this very simple, more readable method:

    public TileView(Context arg5, AttributeSet arg6, int arg7) {
        super(arg5, arg6, arg7);
        this.b0431бб0431б0431 = new Paint();
        TypedArray v0 = arg5.obtainStyledAttributes(arg6,
                xkkxkk.b04310431б0431б0431);
        int v1 = v0.getInt(0, 12);
        TileView.bб0431ббб0431 = v1;
        v0.recycle();
    }

In Part Deux, we will show how the AST API can be leveraged to decrypt encrypted strings of a protected piece of code.
