Using Codeless Native Signatures

One of the new exciting features coming with JEB 4.0 is a set of signatures to identify common native libraries in a compiler-agnostic fashion.

These “codeless” signatures were built to tackle an old reverse-engineering problem: the identification of common open-source libraries in executables. Because such libraries are compiled by the developers themselves, traditional code-based signatures — like our own SigLib — need to be re-generated with the same compiler setup than the developers, otherwise the signatures won’t match because the code differs.

Therefore, identifying open-source libraries with code-based signatures is a lots of effort for a small return, because each set of signatures only matches one compiler setup (compiler’s version, optimization level…), and there is a vast number of them!

We developed codeless signatures to identify open-source libraries without the burden of signatures re-generation for each compiler setup. We are currently shipping signatures for the following libraries:

  • OpenSSL, versions 0.9.8m to 1.1.1g
  • libcurl, versions 7.30.0 to 7.71.1
  • libssh2, versions 1.8.0, 1.8.2 and 1.9.0
  • bzip2, versions 1.0.6 and 1.0.8
  • zlib, versions 1.2.3, 1.2.8, 1.2.10 and 1.2.11

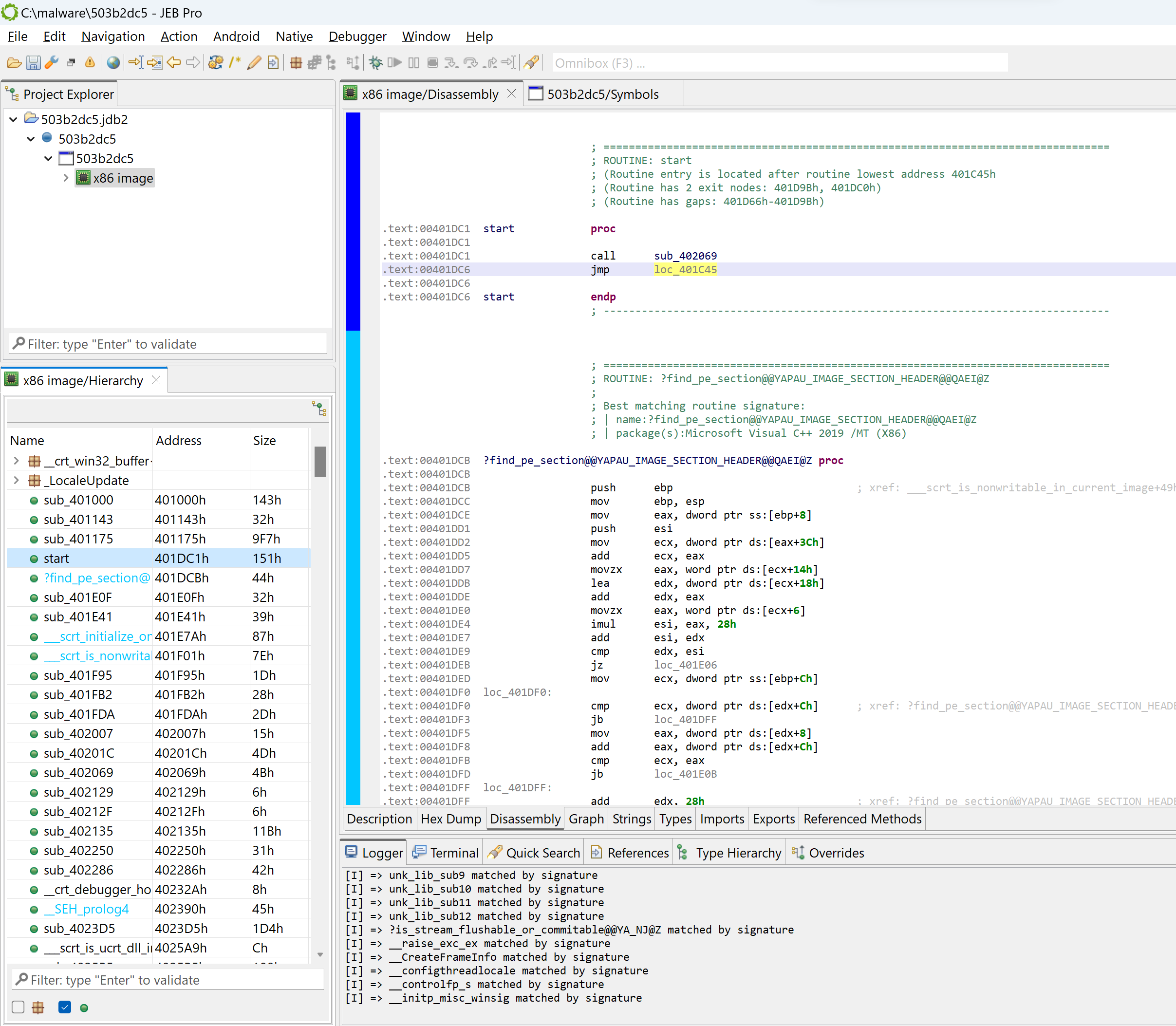

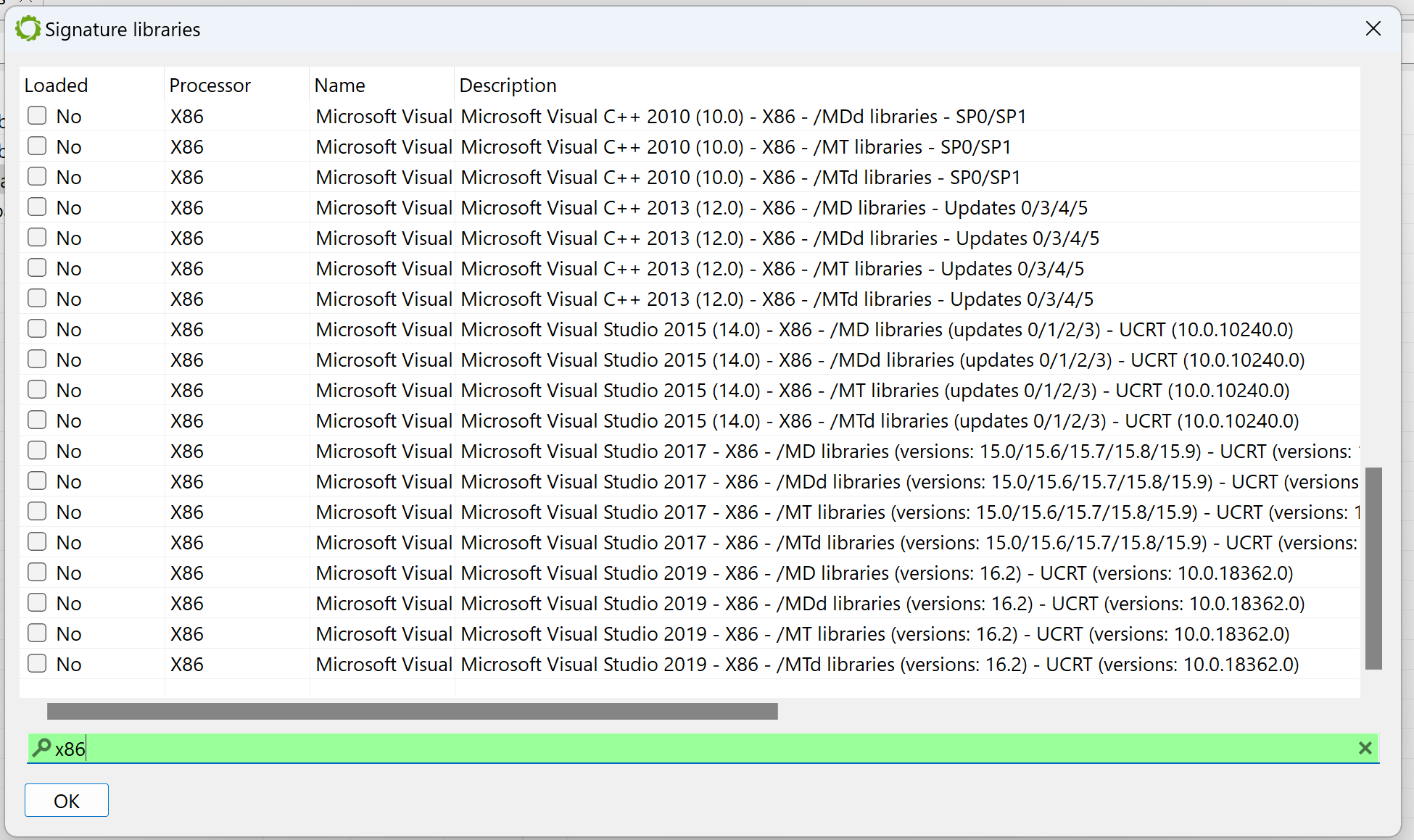

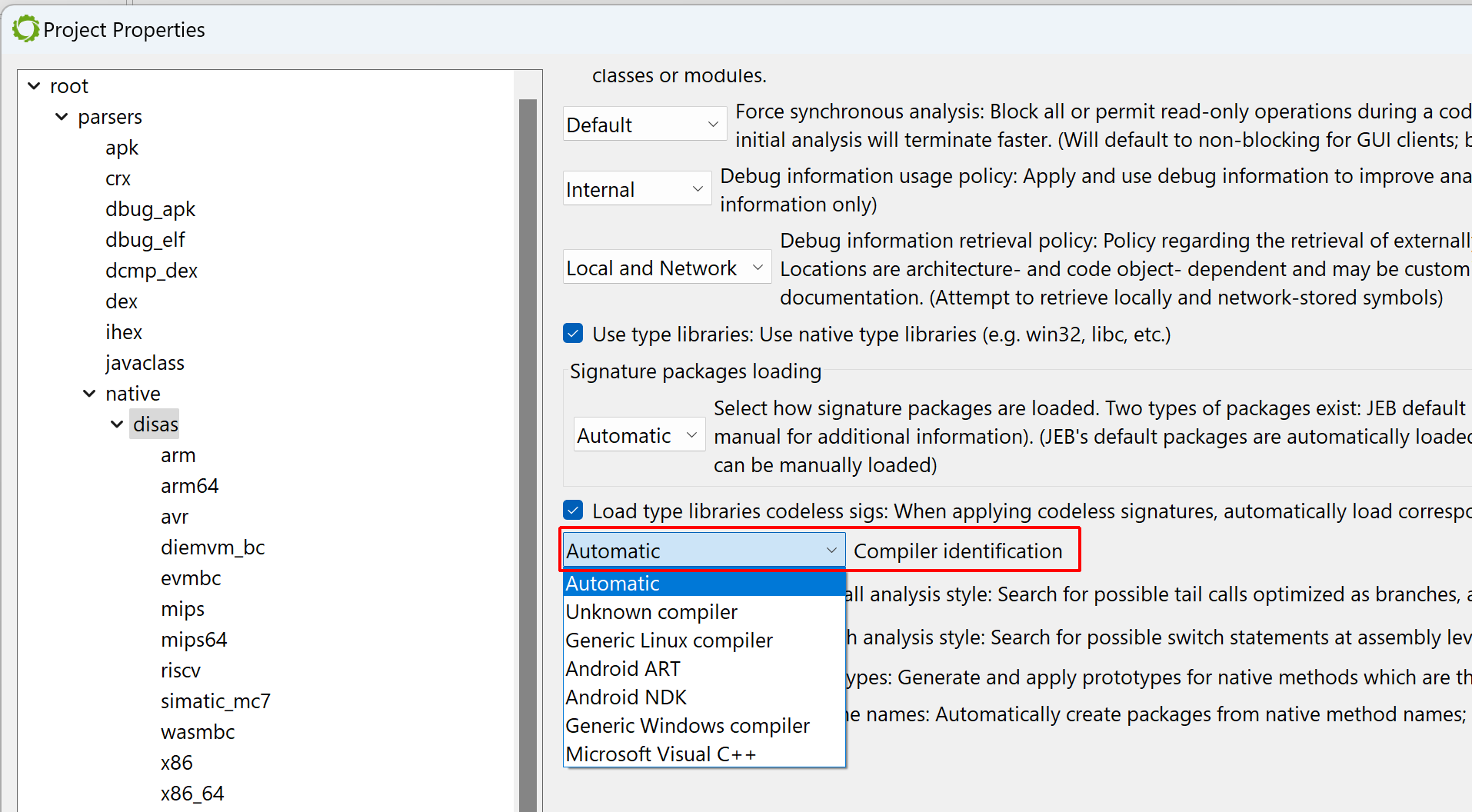

The signatures can be applied on any binary opened in JEB, through “Native > Codeless Signatures Libraries” menu.

We also ship an automatic library version identification tool (available from “Codeless Signature Libraries” dialog), which should help to decide which versions of the library was linked, when it not obvious.

In order to build such signatures we made some tradeoffs, notably by accepting to miss some routines and to have a few false positives. We believe JEB’s codeless signatures are particularly suitable when one is not interested into library’s internals, and therefore the only library routines whose name really matter are the ones used by the rest of the code (like when doing malware analysis).

Overall, our current experiments show promising results, for example we usually identify 50-60% of OpenSSL routines, with a false positives ratio of less than 2%, on a variety of architecture/compiler setups.

We will describe in details the internals of JEB’s codeless signatures in an upcoming whitepaper, but in the meantime we made a video to demonstrate how to use them:

We really encourage you to test JEB’s codeless signatures and report feedback through the usual channels:

JEB’s GENDEC IR Emulation for Auto-Decryption of Data Items

Under some circumstances, JEB’s generic decompiler is able to detect inline decryptors, and subsequently attempt to emulate the underlying IR to generate plaintext data items, both in the disassembly view and, most importantly, decompiled views.1

This feature is available starting with JEB 4.0.3-beta. It makes use of the IREmulator object, available in the public API for scripting and plugins.

Here’s an example of a protected elf file2 (aarch64) that was encountered a few months ago:

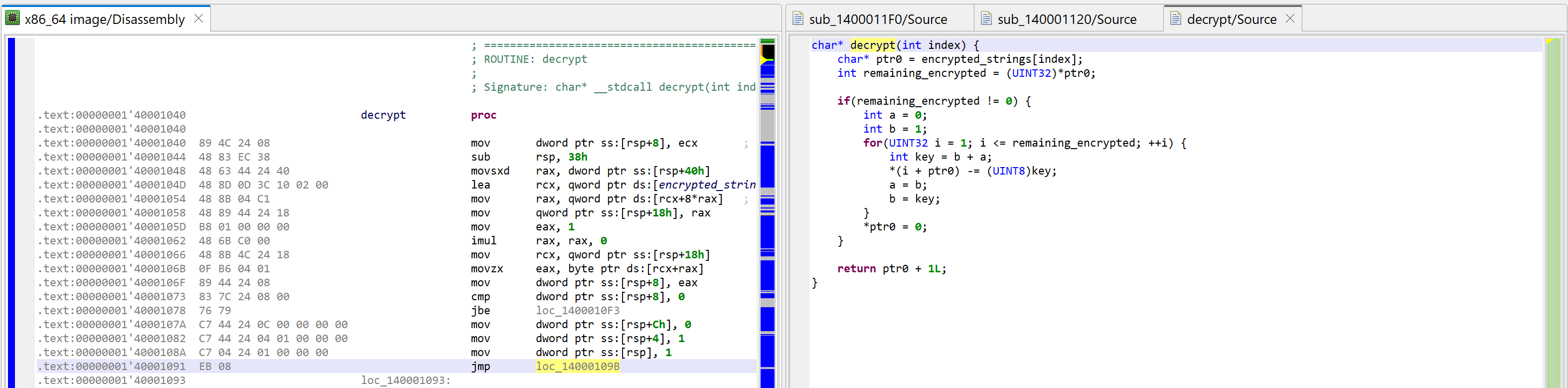

Disassembly of the target routine

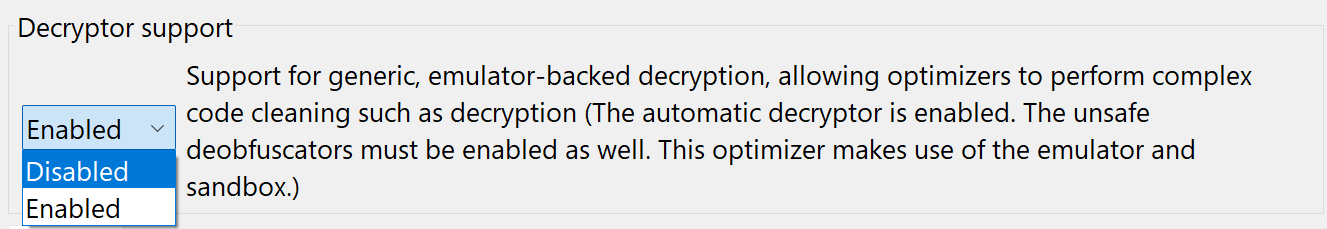

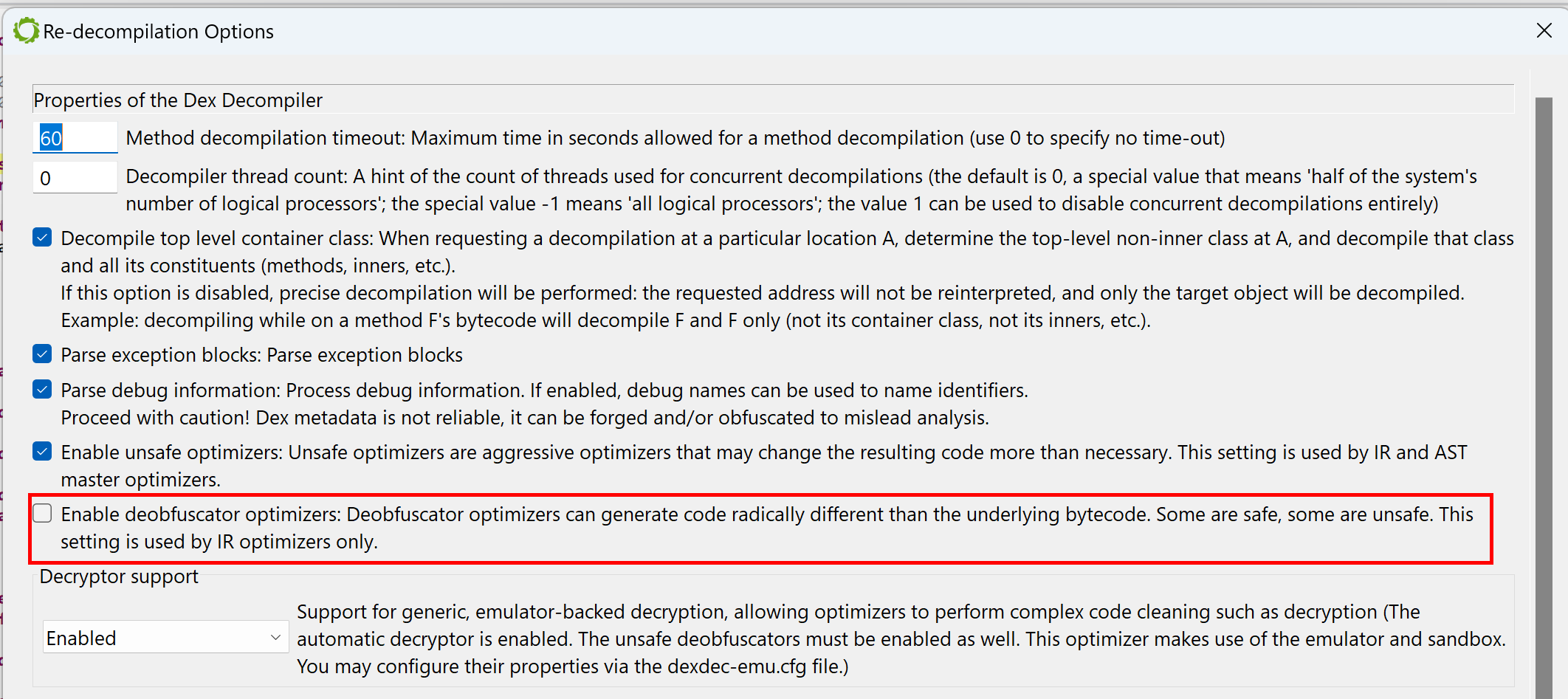

GENDEC’s unsafe optimizers are enabled by default. Let’s disable them before performing a first decompilation, in order to see what the inline decryptor looks like.

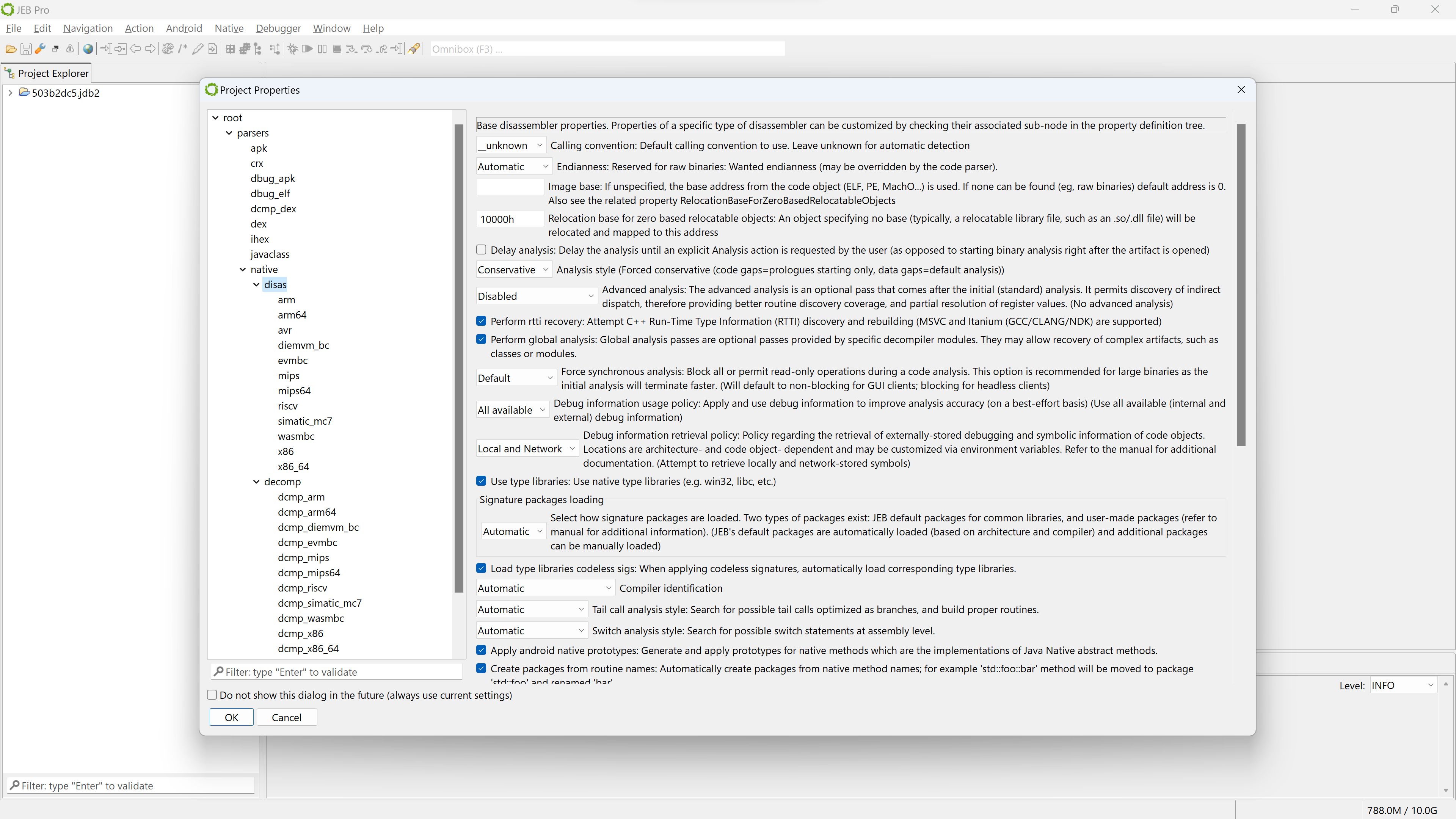

To bring up the decompilation options on-demand, use CTRL+TAB (or Command+TAB), or alternatively, menu Action, command Decompile with Options
Decompilation #1: unsafe optimizers disabled

That decryptor’s control flow is obfuscated (flattened, controlled by the state variable v5). It is called once, depending on the boolean value at 0x2F227. Here, the decrypted contents is used by system_property_get.

Below, the contents in virtual memory, pre-decryption:

Encrypted contents.

Let’s perform another decompilation of the same routine, with the unsafe optimizers enabled this time. GENDEC now will:

  • detect something that potentially could be decryption code
  • start emulating the underlying IR (not visible here, but you can easily read/write the Intermediate Representation via API) portion of code is emulated
  • collect and apply results

See the decrypted contents below. (An data item existed beforehand at 0x2F137, and the decompiler chose not to erase it.) The decompiled code on the right panel no longer shows the decryption loop: an optimizer has discarded it since it can no longer be executed.

Decompilation #2: unsafe optimizers enabled

We may convert the data item (or bytes) to a string by pressing the A key (menu Native, command Create String). The decompiled code will pick it up and refresh the AST as well.

The final result looks like:

The VM and decompiled view show the decrypted code, “ro.build.version.sdk”

A few additional comments:

  • This optimizer is considered unsafe3 because it is allowed to modify the VM of the underlying native code unit, as seen above.
  • The optimizer is generic (architecture-agnostic). It performs its work on the underlying IR mid-stage in the decompilation pipeline, when various optimizations are applied.
  • It makes use of public API methods only, mostly the IREmulator class. Advanced users can write similar optimizers if they choose to. (We will also publish the code of this optimizer on GitHub shortly, as it will serve as a good real-life example of how to use the IR emulator to write powerful optimizers. It’s slightly more than 100 lines of Java.)

We hope you enjoy using JEB 4 Beta. There is a license type for everyone, so feel free to try things out. Do not hesitate to reach out to us on Twitter, Slack, or privately over email! Thanks, and until next time 🙂

  1. Users familiar with JEB’s Dex decompilers will remember that a similar feature was introduced to JEB 3 in 2020, for Android Dalvik code.
  2. sha256 43816c47315aab27e50e6f895774a7b86d591807179e1d3262446ab7d68a56ef also available as lib/arm64-v8a/libd.so in 309d848275aa128ebb7e27e570e5a2876977122625638630a6c61f7434b771c3
  3. “unsafe” in the context of decompilation; unsafe here is not to be understood as, “could any code be executed on the machine”, etc.

Traveling Around Mars With C Emulation

Disclaimer: a long time ago in our galaxy, we published part 1 of this blog post; then we decided to wait for the next major release of JEB decompiler before publishing the rest. A year and a half later, JEB 4.0 is finally out! So it is time for us to publish our complete adventure with MarsAnalytica crackme. This time as one blog covering the full story.

In this blog post, we will describe our journey toward analyzing a heavily obfuscated crackme dubbed “MarsAnalytica”, by working with JEB’s decompiled C code 1.

To reproduce the analysis presented here, make sure to update JEB to version 4.0+.

Part 1: Reconnaissance

MarsAnalytica crackme was created by 0xTowel for NorthSec CTF 2018. The challenge was made public after the CTF with an intriguing presentation by its author:

My reverse engineering challenge ‘MarsAnalytica’ went unsolved at #nsec18 #CTF. Think you can be the first to solve it? It features heavy #obfuscation and a unique virtualization design.

0xTowel

Given that exciting presentation, we decided to use this challenge mainly as a playground to explore and push JEB’s limits (and if we happen to solve it on the road, that would be great!).

The MarsAnalytica sample analyzed in this blog post is the one available on 0xTowel’s GitHub 2. Another version seems to be available on RingZer0 website, called “MarsReloaded”.

So, let’s examine the beast! The program is a large x86-64 ELF (around 10.8 MB) which, once executed, greets the user like this:

Inserting a dummy input gives:

It appears we have to find a correct Citizen ID! Now let’s open the executable in JEB. First, the entry point routine:

Entry Point

Ok, the classic libc entry point, now let’s look at strings and imports:

A few interesting imports: getchar() to read user input, and putchar() and puts() to write. Also, some memory manipulation routines, malloc() and memcpy(). No particular strings stand out though, not even the greeting message we previously saw. This suggests we might be missing something.

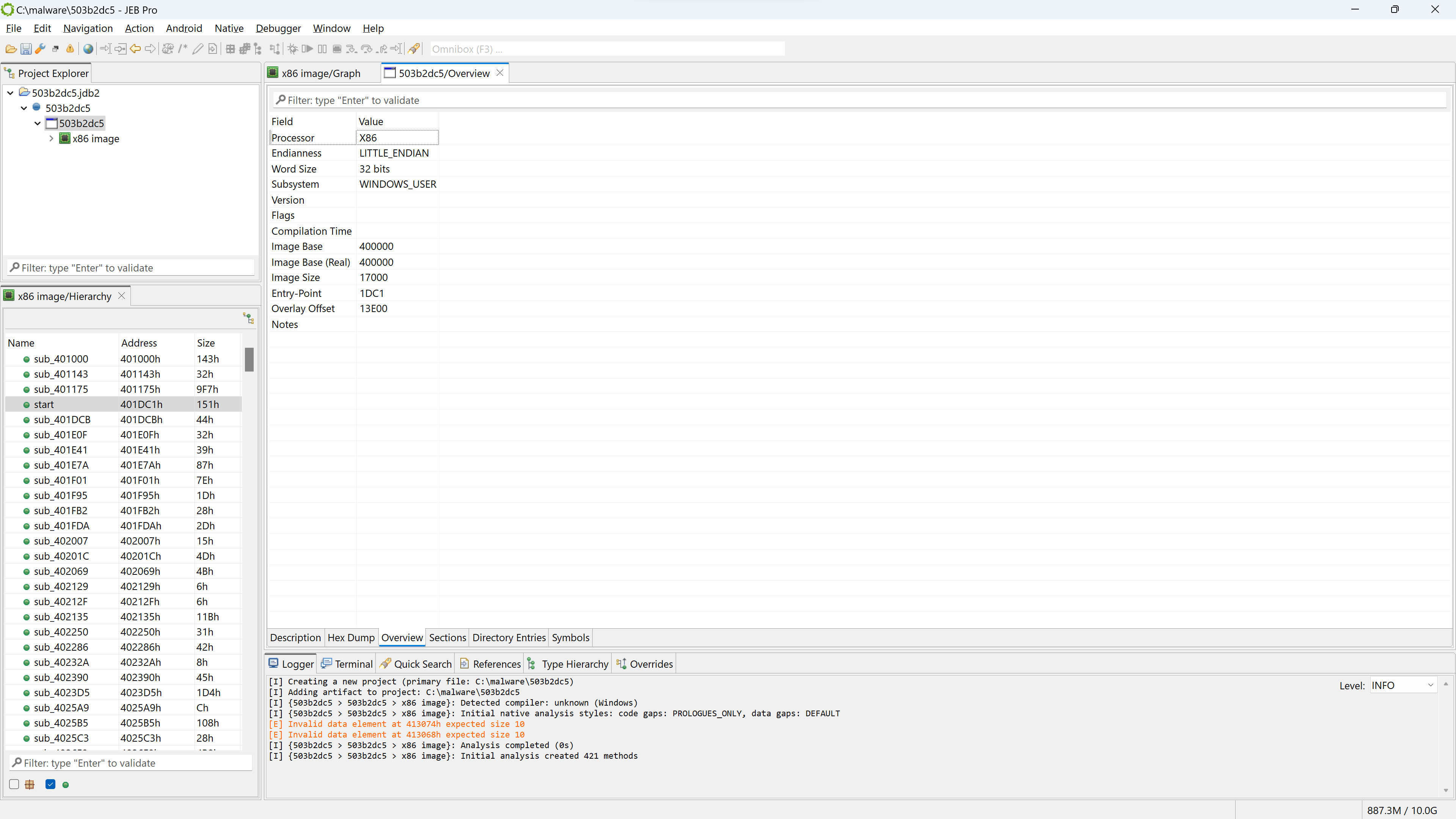

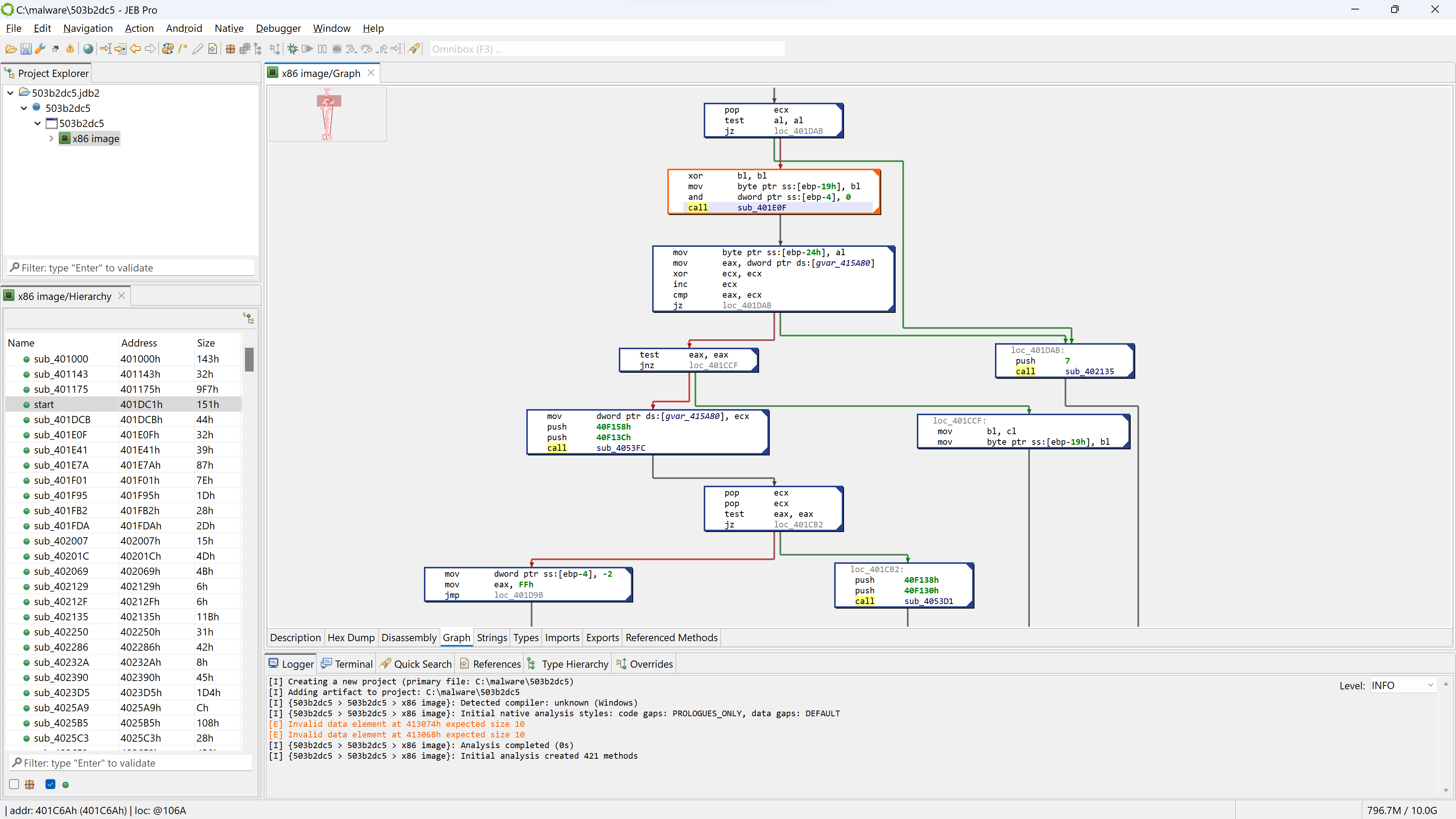

Actually, looking at the native navigation bar (right-side of the screen by default), it seems JEB analyzed very few areas of the executable:

Navigation Bar
(green is cursor’s location, grey represents area without any code or data)

To understand what happened let’s first look at JEB’s notifications window (File > Notifications):

Notifications Window

An interesting notification concerns the “Initial native analysis styles”, which indicates that code gaps were processed in PROLOGUES_ONLY mode (also known as a “conservative” analysis). As its name implies, code gaps are then disassembled only if they match a known routine prologue pattern (for the identified compiler and architecture).

This likely explains why most of the executable was not analyzed: the control-flow could not be safely followed and unreferenced code does not start with common prologue patterns.

Why did JEB used conservative analysis by default? JEB usually employs aggressive analysis on standard Linux executables, and disassembles (almost) anything within code areas (also known as “linear sweep disassembly”). In this case, JEB went conservative because the ELF file looks non-standard (eg, its sections were stripped).

Explore The Code (At Assembly Level)

Let’s take a look at the actual main() (first argument of __libc_start_main()):

main() code
(part 4)

Ok… that’s where the fun begins!

So, first a few memcpy() to copy large memory areas onto the stack, followed by series of “obfuscated” computations on these data. The main() routine eventually returns on an address computed in rax register. In the end, JEB disassembler was not able to get this value, hence it stopped analyzing there.

Let’s open the binary in JEB debugger, and retrieve the final rax value at runtime: 0x402335. We ask JEB to create a routine at this address (“Create Procedure”, P), and end up on very similar code. After manually following the control-flow, we end up on very large routines — around 8k bytes –, with complex control-flow, built on similar obfuscated patterns.

And yet at this point we have only seen a fraction of this 10MB executable… We might naively estimate that there is more than 1000 routines like these, if the whole binary is built this way (10MB/8KB = 1250)!

Most obfuscated routines re-use the same stack frame (initialized in main() with the series of memcpy()). In others words, it looks like a very large function has been divided into chunks, connected through each other by obfuscated control flow computations.

At this point, it seems pretty clear that a first objective would be to properly retrieve all native routines. Arguably the most robust and elegant way to do that would be to follow the control flow, starting from the entry point routine . But how to follow through all these obfuscated computations?

Explore The Code (At C Level)

Let’s now take a look at the pseudo-C code produced by JEB for those first routines. For example, here is main():

Decompiled main()

Overall, around 40 lines of C code, most of them being simple assignments, and a few others being complex operations. In comparison to the 200 non-trivial assembly instructions previously shown, that’s pretty encouraging.

What Do We Know

Let’s sum up what we noticed so far: MarsAnalytica’s executable is divided into (pretty large) handler routines, each of them passing control to the next one by computing its address. For that purpose, each handler reads values from a large stack, make a series of non-trivial computations on them, then write back new values into the stack.

As originally mentioned by 0xTowel, the crackme author, it looks like a virtual-machine style obfuscation, where bytecodes are read from memory, and are interpreted to guide the execution. It should be noted that virtual machine handlers are never re-executed: execution seems to go from lower to higher addresses, with new handlers being discovered and executed.

Also, let’s notice that while the executable is strongly obfuscated, there are some “good news”:

  • There does not seem to be any self-modifying code, meaning that all the code is statically visible, we “just” have to compute the control-flow to find it.
  • JEB decompiled C code looks (pretty) simple, most C statements are simple assignments, except for some lengthy expression always based on the same operations; the decompilation pipeline simplified away parts of the complexity of the various assembly code patterns.
  • There are very few subroutines called (we will come back on those later), and also a few system APIs calls, so most of the logic is contained within the chain of obfuscated handlers.

What Can We Do

Given all we know, we could try to trace MarsAnalytica execution by implementing a C emulator working on JEB decompiled code. The emulator would simulate the execution of each handler routine, update a memory state, and retrieve the address of the next handler.

The emulator would then produce an execution trace, and provide us access to the exact memory state at each step. Hence, we should find at some point where the user’s input is processed (typically, a call to getchar()), and then hopefully be able to follow how this input gets processed.

The main advantage of this approach is that we are going to work on (small) C routines, rather than large and complex assembly routines.

There are a few additional reasons we decided to go down that road:

The C emulator would be architecture-independent — several native architectures are decompiled to C by JEB –, allowing us to re-use it in situations where we cannot easily execute the target (e.g. MIPS/ARM).

– It will be an interesting use-case for JEB public API to manipulate C code. Users could then extend the emulator to suit their needs.

This approach can only work if the decompilation is correct, i.e. if the C code remains faithful to the original native code. In other words, it allows to “test” JEB decompilation pipeline’s correctness, which is — as a JEB’s developer — always interesting!

Nevertheless, a major drawback of emulating C code on this particular executable, is that we need the C code in the first place! Decompiling 10MB of obfuscated code is going to take a while; therefore this “plan” is certainly not the best one for time-limited Capture-The-Flag competitions.

Part 2: Building a (Simple) C Emulator

The emulator comes as a JEB back-end plugin, whose code can be found on our GitHub page. It starts in CEmulatorPlugin.java, whose logic can be roughly summarized as the following pseudo-code:

emulatorState = initEmulatorState();
while(true) {
  handlerRoutine = analyze(handlerAddress) // disassemble and decompile
  emulatorState = emulator.emulate(handlerRoutine, emulatorState);

  handlerAddress = emulatorState.getNextHandlerAddress();
  if(handlerAddress.isUnknown()){
    break;
  }
}

In this part we will focus on emulate() method. This method’s purpose is to simulate the execution of a given C routine from a given machine state, and to provide in return the final machine state at the end of the routine.

Decompiled C Code

First thing first, let’s explore what JEB decompiled code looks like, as it will be emulate() input. JEB decompiled C code is stored in a tree-structured representation, akin to an Abstract Syntax Tree (AST).

For example, let’s take the following C function:

int myfunction()
{
    int a = 1;
    while(a < 3) {
        a = a + 1;
    }
    return a;
}

The JEB representation of myfunction body would then be:

AST Representation
(rectangles are JEB interfaces, circles are values)

As of JEB 4.0, the hierarchy of interfaces representing AST elements (i.e. nodes in the graph) is the following:

AST ICElement Hierarchy

Two parts of this hierarchy are of particular interest to us, in the context of building an emulator:

Now, a method’s AST can be retrieved with JEB API by using INativeDecompilerUnit.decompile() (see CEmulatorPlugin.disassembleAndDecompile() for how to disassemble and decompile a not-yet-existing routine).

Where Is The Control Flow?

While an AST provides a precise representation of C elements, it does not provide explicitly the control flow. That is, the order of execution of statements is not normally provided by an AST, which rather shows how some elements contain others from a syntactic point-of-view.

In order to simulate a C function execution, we are going to need the control flow. So here is our first step: compute the control flow of a C method and make it usable by our emulator.

To do so, we implemented a very simple Control-Flow Graph (CFG), which is computed from an AST. The code can be found in CFG.java, please refer to the documentation for the known limitations.

Here is for example the CFG for the routine previously presented myfunction():

myfunction() CFG

Why does JEB does not provide a CFG for decompiled C code? Mainly because at this point JEB decompiler does not need it. Most important optimizations are done on JEB Intermediate Representation — for which there is indeed a CFG. On the other hand, C optimizations are mainly about “beautifying” the code (i.e. pure syntactic transformations), which can be done on the AST only 3.

Emulator Implementation

The main logic of the emulator can be found in emulate(ICMethod method, EmulatorState inputState), which emulates a whole C method from a given input state:

CFG cfg = CFG.buildCFG(method);
ICStatement currentStatement = cfg.getEntryPoint();

while(currentStatement != null) {
   currentStatement = emulateStatement(cfg, currentStatement);
}

Before digging into the emulation logic, let’s see how emulator state is represented and initialized.

Emulator State

The emulator state is a representation of the machine’s state during emulation; it mainly comprehends the state of the memory and of the CPU registers.

The memory state is a IVirtualMemory object — JEB interface to represent virtual memory state. This memory state is created with MarsAnalytica executable initial memory space (set by JEB loader), and we allocate a large area at an arbitrary address to use as the stack during emulation:

// initialize from executable memory
memory = nativeUnit.getMemory();

// allocate large stack from BASE_STACK_POINTER_DEFAULT_VALUE (grows downward)
VirtualMemoryUtil.allocateFillGaps(memory, BASE_STACK_POINTER_DEFAULT_VALUE - 0x10_0000, 0x11_0000, IVirtualMemory.ACCESS_RW);

The CPU registers state is simply a Map from register IDs — JEB specific values to identify native registers — to values:

Map<Integer, Long> registers = new HashMap<>();

Emulator Logic

The emulator processes each ICStatement in two steps (see emulateStatement()):

  1. Update the state according to the statement semantic, i.e. propagate all side-effects of the statement to the emulator state.
  2. Determine which statement should be executed next; this might involve evaluating some predicates.

For example, let’s examine the logic to emulate a simple assignment like a = b + 0x174:

void evaluateAssignment(ICAssignment assign) {
  // evaluate right-hand side
  Long rightValue = evaluateExpression(assign.getRight());

  // assign to left-hand side
  state.setValue(assign.getLeft(), rightValue);
}

The method evaluateExpression() is in charge of getting a concrete value for a C expression (i.e. anything under ICExpression), which involves recursively processing all the subexpressions of this expression.

In our example, the right-hand side expression to evaluate is an ICOperation (b + 0x17). Here is the extract of the code in charge of evaluating such operations:

Long evaluateOperation(ICOperation operation) {
        ICExpression opnd1 = operation.getFirstOperand();
        ICExpression opnd2 = operation.getSecondOperand();
        ICOperator operator = operation.getOperator();

        switch(operator.getType()) {
        case ADD:
            return evaluateExpression(opnd1) + evaluateExpression(opnd2);

[...REDACTED...]

Therefore, we simply compute a concrete result using the corresponding Java operators for each ICOperator, and recursively evaluate the operands.

Now, evaluating variable b means either reading memory or a register, depending on where b is mapped:

Long getVarValue(ICIdentifier id) {
  // read memory for local/global variables...
  if(id.getIdentifierClass() == CIdentifierClass.LOCAL || id.getIdentifierClass() == CIdentifierClass.GLOBAL) {
      return readMemory(getVarAddress(id), getTypeSize(id.getType()));
  }
  // ...otherwise read CPU register
  else {
      return registers.get(id.getId());
  }
}

If b is a local variable, i.e. mapped in stack memory, the method ICIdentifier.getAddress() provides us its offset from the stack base address. Also note that an ICIdentifier has an associated ICType, which provides us the variable’s size (through the type manager, see emulator’s getTypeSize()).

Finally, evaluating constant 0x17 in the operation b + 0x17 simply means returning its raw value:

if(expr instanceof ICConstantInteger) {
    return ((ICConstantInteger<?>)expr).getValueAsLong();
}

For statements with more complex control flow than an assignment, the emulator has to select the correct next statement from the CFG. For example, here is the emulation of a while loop wStm (ICWhileStm):

// if predicate is true, next statement is while loop body...
if(evaluateExpression(wStm.getPredicate()) != 0) {
   return cfg.getNextTrueStatement(wStm);
}
// ...otherwise next statement is the one following while(){..}
else {
   return cfg.getNextStatement(wStm);
}

Refer to the complete implementation for more glory details.

Emulating System APIs

In MarsAnalytica there are only a few system APIs that get called during the execution. Among those APIs, only memcpy() is actually needed for our emulation, as it serves to initialize the stack (remember main()). Here is the API emulation logic:

Long simulateWellKnownMethods(ICMethod calledMethod,
            List<ICExpression> parameters) {

        if(calledMethod.getName().equals("→time")) {
            return 42L; // value does not matter
        }
        else if(calledMethod.getName().equals("→srand")) {
            return 37L; // value does not matter
        }
        else if(calledMethod.getName().equals("→memcpy")) {
            ICExpression dst = parameters.get(0);
            ICExpression src = parameters.get(1);
            ICExpression n = parameters.get(2);
            // evaluate parameters concrete values
            [...REDACTED...]
            state.copyMemory(src_, dst_, n_);
            return dst_;
          }
       }
}

Demo Time

The final implementation of our tracer can be found in our GitHub page. Once executed, the plugin logs in JEB’s console an execution trace of the emulated methods, each of them providing the address of the next one:

> emulating method sub_400DA9...
  >> done; next method entry point: 0x00402335
> emulating method sub_402335...
  >> done; next method entry point: 0x00402335
> emulating method sub_402335...
  >> done; next method entry point: 0x00401b8f
> emulating method sub_401B8F...
  >> done; next method entry point: 0x004018cd
> emulating method sub_4018CD...
  >> done; next method entry point: 0x00401f62
> emulating method sub_401F62...
  >> done; next method entry point: 0x00402335
> emulating method sub_402335...
  >> done; next method entry point: 0x00403477
> emulating method sub_403477...
  >> done; next method entry point: 0x00401502
> emulating method sub_401502...
  >> done; next method entry point: 0x004018cd

[...REDACTED...]

Good news everyone: the handlers addresses are correct (we double-checked them with a debugger). In other words, JEB decompilation is correct and our emulator remains faithful to the executable logic. Phew…!

Part 3: Solving The Challenge

Plot Twist: It Does Not Work

The first goal of the emulator was to find where user’s input is manipulated. We are looking in particular for a call to getchar(). So we let the emulator run for a long time, and…

…it never reached a call to getchar().

The emulator was correctly passing through the obfuscated handlers (we regularly double-checked their addresses with a debugger), but after a few days the executed code was still printing MarsAnalytica magnificent ASCII art prompt (reproduced below).

MarsAnalytica Prompt

After investigating, it appears that characters are printed one by one with putchar(), and each of these calls is in the middle of one heavily obfuscated handler, which will be executed once only. More precisely, after executing more than one third of the whole 10MB, the program is still not done with printing the prompt!

As mentioned previously, the “problem” with emulating decompiled C code is that we need the decompiled code in the first place, and decompiling lots of obfuscated routines takes time…

Let’s Cheat

Ok, we cannot reach in a decent time the point where the user’s input is processed by the program. But the execution until this point should be deterministic. What if… we start the emulation at the point where getchar() is called, rather than from the entry-point?

In other words, we are going to assume that we “found” the place where user’s input starts to be processed, and use the emulator to analyze how this input is processed.

To do so, we used GDB debugger to set a breakpoint on getchar() and dumped both stack and heap memories at this point 5. Then, we extended the emulator to be able to initialize its memory state from stack/heap memory dumps, and change emulation start address to be the first call to getchar().

What Now?

At this point getchar() is called to get the first input character, so we let the emulator simulate this API by returning a pseudo-randomly chosen character, such that we can follow the rest of the execution. After 19 calls to getchar() we finally enter the place where user’s input is processed. Hooray…

Then, we let the emulator run for a whole day, which provided the execution trace we will be working on for the rest of this blog. After digging into the trace we noticed that input characters were passed as arguments to a few special routines.

Introducing The Stack Machine

When we first skimmed through MarsAnalytica code, we noticed a few routines that seemed specials for two reasons:

  • While obfuscated routines are executed only once and in a linear fashion (i.e. from low to high memory addresses), these “special” routines are at the very beginning of the executable and are called very often during the execution.
  • These routines’ code is not obfuscated and seems to be related with memory management at first sight.

For example, here is JEB decompiled code for the first of them (comments are ours):

long sub_400AAE(unsigned long* param0, int param1) {
    long result;
    unsigned long* ptr0 = param0;
    int v0 = param1;

    if(!ptr0) {
        result = 0xffffffffL;
    }
    else {
        // allocate new slot
        void* ptr1 = →malloc(16L);
        if(!ptr1) {
            /*NO_RETURN*/ →exit(0);
        }

        // set value in new slot
        *(int*)((long)ptr1 + 8L) = v0;

        // insert new slot in first position
        *(long*)ptr1 = *ptr0;
        *ptr0 = ptr1;
        result = 0L;
    }

    return result;
}

What we have here is basically a “push” operation for a stack implemented as a chained list (param0 is a pointer to the top of the stack, param1 the value to be pushed).

Each slot of the stack is 16 bytes, with the first 8 bytes being a pointer to the next slot and the next 4 bytes containing the value (remaining 4 bytes are not used).

It now seemed clear that these special routines are the crux of the challenge. So we reimplemented most of them in the emulator, mainly as a way to fully understand them. For example, here is our “push” implementation:

/** PUSH(STACK_PTR, VALUE) */
if(calledMethod.getName().equals("sub_400AAE")) {
    Long pStackPtr = evaluateExpression(parameters.get(0));
    Long pValue = evaluateExpression(parameters.get(1));

    long newChunkAddr = allocateNewChunk();

    // write value
    state.writeMemory(newChunkAddr + 8, pValue, 4);

    // link new chunk to existing stack
    Long stackAdr = state.readMemory(pStackPtr, 8);
    state.writeMemory(newChunkAddr, stackAdr, 8);

    // make new chunk the new stack head
    state.writeMemory(pStackPtr, newChunkAddr, 8);

}

Overall, these operations are implementing a custom data-structure that can be operated in a last-in, first-out fashion, but also with direct accesses through indexes. Let’s call this data structure the “stack machine”.

Here are the most used operators:

AddressOperator
(names are ours)
Argument(s)
0x400AAEPUSHVALUE
0x4009D7POPVALUE
0x400D08GETINDEX
0x400D55SETINDEX,VALUE
Stack Machine’s Main Operators

Tracing The Stack Machine

At this point, we modified the emulator to log only stack operations with their arguments, starting from the first call to getchar(). The full trace can be found here, and here is an extract:

S: SET index:7 value:97
S: SET index:8 value:98
S: SET index:13 value:99
S: SET index:15 value:100
S: SET index:16 value:101

[...REDACTED...]

S: PUSH 2700
S: POP (2700)
S: SET index:32 value:2700
S: GET index:32
S: PUSH 2700
S: PUSH 2
S: POP (2)
S: POP (2700)
S: PUSH 2702

[...REDACTED...]

The trace starts with a long series of SET operations, which are storing the result of getchar() at specific indexes in the stack machine (97, 98, 99,… are characters provided by the emulator).

And then, a long series of operations happen, combining the input characters with some constant values. Some interesting patterns appeared at this point, for example:

S: POP (2)
S: POP (2700)
S: PUSH 2702

Here an addition was made between the two popped values, and the result was then pushed. Digging into the trace, it appears there are also handlers popping two values and pushing back a subtraction, multiplication, exclusive or, etc.

Another interesting pattern appears at several places:

S: POP (16335)
S: POP (1234764)
S: PUSH 1

Looking at the corresponding C code, it is actually a comparison between the two popped values — “greater than” in this case –, and the boolean result (0 or 1) is then pushed. Once again, different comparison operators (equal, not equal, …) are used in different handlers.

Finally, something suspicious also stood out in the trace:

S: PUSH 137
S: PUSH 99
S: POP (137)
S: POP (99)

The popped values do not match the order in which they were pushed!

Digging into the code we end up on a special routine (0x402AB2), which swaps the two top-most values… So to make things clearer, the emulator logs in the execution trace a SWAP operator whenever this routine gets executed.

Where Is My Precious Operator?

Our objective here is to understand how input characters are manipulated, and what tests are done on them. In other words, we want to know for each POP/POP/PUSH pattern if it is an operation (and which operation — addition, subtraction …–), or a test (and which test — equal, greater than …–).

Again, note that routines implementing POP/POP/PUSH patterns are executed only once. So we cannot individually analyze them and rely on their addresses.

This is where working on decompiled C code becomes particularly handy. For each POP/POP/PUSH series:

  • We search in the method’s decompiled code if a C operator was used on the PUSH operand. To do so, it is as simple as looking at the operand itself, thanks to JEB decompiler’s optimizations! For example, here is a subtraction:
...
long v1 = pop(v0 - 0x65f48L);
long v2 = pop(v0 - 0x65f48L);
push(v0 - 0x65f48L, v1 - v2);
...

When a C operator is found in push() second operand, the emulator adds the info (with the number of operands) in the trace:

S: POP (137)
S: POP (99)
S: PUSH 38
| operation: (-,#op=2)
  • Also, we check if there is a “if” statement following a POP in the C code. For example, here is a “greater-than” check between popped values:
...
long v2 = pop(v0 - 0x65f48L);
long v3 = pop(v0 - 0x65f48L);
if(v2 > v3) {
...

If so, the emulator extracts the C operator used in the if statement and logs it in the trace (as a pseudo stack operator named TEST):

S: POP (16335)
S: POP (1234764)
S: TEST (>,#op=2)
S: PUSH 0

It should be noted that operands are always ordered in the same way: first poped value is on left side of operators. So operators and operands are the only thing we need to reconstruct the whole operation.

Time To Go Symbolic

At this point, our execution trace shows how the user’s input is stored onto the stack, and which operations and tests are then done. Our emulator is providing a “bad” input, so they are certainly failed checks in our execution trace. Our goal is now to find these checks, and then the correct input characters.

At this point, it is time to introduce “symbolic” inputs, rather than using concrete values as we have in our trace. To do so, we made a quick and dirty Python script to replay stack machine trace using symbolic variables rather than concrete values.

First, we initialize a Python “stack” with symbols (the stack is a list(), and the symbols are strings representing each character “c0“, “c1“, “c2“…). We put those symbols at the same indexes used by the initial SET operations:

# fill stack with 'symbolic' variables (ie, characters)
# at the initial offset retrieved from the trace
stack = [None] * 50 # arbitrary size
charCounter = 0
stack[7] = 'c' + str(charCounter) # S: SET index:7 value:c0
charCounter+=1
stack[8] = 'c' + str(charCounter) # S: SET index:8 value:c1

[... REDACTED ...]

We also need a temporary storage for expressions that get popped from the stack.

Then, we read the trace file and for each stack operation we execute the equivalent operation on our Python stack:

if operator == "SWAP":
  last = stack.pop()
  secondToLast = stack.pop()
  stack.append(last)
  stack.append(secondToLast)

elif operator == "GET":
  index = readIndexFromLine(curLine)
  temporaryStorage.append(stack[int(index)])

elif operator == "SET":
  index = readIndexFromLine(curLine)
  stack[int(index)] = temporaryStorage.pop()

elif operator == "POP":
  value = stack.pop()
  temporaryStorage.append(value)

[... REDACTED ...]

Now here is the important part: whenever there is an operation, we build a new symbol by “joining” the symbol operands and the operator. Here is an example of an addition between symbols “c5” and “c9“, corresponding respectively to the concrete input characters initially stored at index 26 and 4:

Concrete TraceSymbolic Trace
...
GET index:26

PUSH 102

GET index:4

PUSH 106

POP (106)

POP (102)

PUSH 208
| operation: (+,#op=2)
...
...
GET index:26

PUSH "c5"

GET index:4

PUSH "c9"

POP ("c9")

POP ("c5")

PUSH "c9+c5"

...
Concrete execution trace, and its corresponding symbolic trace; on the symbolic side, rather than pushing the actual result of 106 + 102, we build an addition between the two symbols corresponding to the two concrete values

Note that our symbolic executor starts with a clean stack, containing only input symbols. All constants used during the computation are indeed coming from the bytecode (the large memory area copied on the (native) stack at the beginning of the execution), and not from the stack machine.

We can then observe series of operations on input symbols getting build by successive POP/POP/PUSH patterns, and being finally checked against specific values. Here is an extract of our stack at the end:

((((c12-c10)^c13)*(c6*c14))!=16335)
(((c18^c1)^(c15-c7))!=83)
((((c9+c5)^c0)*(c17-c16))!=4294961394)
((c3-c11)!=11)
(((c2+c4)^c8)!=3)
((c8+(c15-c4))!=176)
((((c9^c10)-(c11+c18))^c6)!=4294967097)
(((c1*(c0^c17))+(c2*c16))!=9985)
(((c14*c13)-c7)!=2083)
(((c12+c3)-c5)!=110)
(((c8*c10)+(c9+c13))!=5630)
(((c5-c16)-(c2+c0))!=4294967114)
((c17*(c14^c7))!=7200)
(((c1*c3)+(c6*c11))!=17872)
(((c12-c15)-(c18*c4))!=4294961888)
(((c11*c2)+(c3*c15))!=18888)
((c16*(c5+c13))!=15049)
((c17*(c0+c10))!=12150)
((c18*(c14^c6))!=10080)
(((c7+c12)-c4)!=132)
((c8+(c1*c9))!=2453)

It seems pretty clear that those checks are the ones we are looking for, except that we need to revert inequality tests into equality tests.

Now, how to find the values of symbols “c0“, “c1“,.. passing these tests?

The Final

To find the correct input characters, we used Z3 SMT solver Python bindings, and let the solver do its magic:

from z3 import *

# initialize our characters as 8-bit bitvectors
c0 = BitVec('c0', 8)
c1 = BitVec('c1', 8)
c2 = BitVec('c2', 8)
c3 = BitVec('c3', 8)
c4 = BitVec('c4', 8)
c5 = BitVec('c5', 8)
c6 = BitVec('c6', 8)
c7 = BitVec('c7', 8)
c8 = BitVec('c8', 8)
c9 = BitVec('c9', 8)
c10 = BitVec('c10', 8)
c11 = BitVec('c11', 8)
c12 = BitVec('c12', 8)
c13 = BitVec('c13', 8)
c14 = BitVec('c14', 8)
c15 = BitVec('c15', 8)
c16 = BitVec('c16', 8)
c17 = BitVec('c17', 8)
c18 = BitVec('c18', 8)

s = Solver()

# allowed character range
s.add(c0 > 32, c0 < 127)
s.add(c0 > 32, c0 < 127)
s.add(c1 > 32, c1 < 127)
s.add(c2 > 32, c2 < 127)
s.add(c3 > 32, c3 < 127)
[... REDACTED ...]

# checks
s.add((((c12-c10)^c13)*(c6*c14))==16335)
s.add(((c18^c1)^(c15-c7))==83)
s.add((((c9+c5)^c0)*(c17-c16))==4294961394)
s.add((c3-c11)==11)
s.add(((c2+c4)^c8)==3)
s.add((c8+(c15-c4))==176)
[... REDACTED ...]

Here is another advantage to work with C code: the expressions built from our emulator’s trace are using high-level operators, which are directly understood by Z3.

Finally, we ask Z3 for a possible solution to the constraints, and we build the final string from c0, c1,… values:

m = s.model()
result = ''
result += chr(m[c0].as_long())
result += chr(m[c1].as_long())
result += chr(m[c2].as_long())
result += chr(m[c3].as_long())
...

And…

Hurray!

Conclusion

We hope you enjoy this blog post, where we used JEB C decompiled code to analyze a heavily obfuscated executable.

Please refer to our GitHub page for emulator code. While it has been tailored for MarsAnalytica crackme, it can be extended to emulate any executable’s decompiled C code (MarsAnalytica’s specific emulation logic is constrained in subclass MarsAnalyticaCEmulator).

You can run the plugin directly from JEB UI (refer to README):

By default, it will show emulation traces as text subunits in JEB project (stack machine trace in MarsAnalytica mode, or just C statements trace):

Plugin output: left panel is MarsAnalytica stack machine trace (when MarsAnalytica specific emulation logic is enabled), while right panel shows C statements emulation trace

Alternatively, the plugin comes with a headless client, more suitable to gather long running emulation traces.

Finally, kudo to 0xTowel for the awesome challenge! You can also check the excellent Scud’s solution.

Feel free to message us on Slack if you have any questions. In particular, we would be super interested if you attempt to solve complex challenges like this one with JEB!


  1. While JEB’s default decompiled code follows (most of) C syntactic rules and their semantics, some custom operators might be inserted to represent low-level operations and ease the reading; hence strictly speaking JEB’s decompiled code should be called pseudo-C. The decompiled output can also be variants of C, e.g. the Ethereum decompiler produce pseudo-Solidity code.
  2. SHA1 of the UPX-packed executable: fea9d1b1eb9d3f93cea6749f4a07ffb635b5a0bc
  3. Implementing a complete CFG on decompiled C code will likely be done in future versions of JEB, in order to provide more complex C optimizations.
  4. The actual implementation is more complex than that, e.g. it has to deal with pointers dereferencement, refer to emulateStatement() for details.
  5. Dumping memory was done with peda for GDB, and commands dumpmem stack.mem stack and dumpmem heap.mem heap

JEB 4 in a Nutshell

We are glad to announce that JEB 4 Beta is available for download!

  • Full build users will be able to install JEB 4 separately. Check your email or switch to the BETA update channel to receive download information.
  • JEB Demo build remains a limited version of JEB Pro. Download the demo of JEB 4 Beta here.
  • The new JEB Community Edition build is entirely free and fully featured. It ships with the Intel x86/x64 decompilers. Download it here.

See the full list of modules available in each build below (click for the full table):

Click to see the full list of modules available for each build type.

What’s new in JEB 4

The focus was mostly on improving and upgrading our native code analysis components, including GENDEC, the generic decompiler. That includes x86, x64, arm, aarch64, mips, mips64, evm, wasm, and other modules currently shipping with JEB builds. The UI client also received improvements regarding performance, auto-completion, Native Analysis widgets, a JEB python script manager and editor, as well as an omnibox for global project search, quick view and navigation.

Although we will write separate contents on specific features (e.g. C++ reconstruction, IR emulation and sandboxing, codeless signatures, etc.) in the coming weeks, the individual changes are too many to list. It is easier to open up a file and start an analysis. Install JEB 4 Pro, or download the Demo build (if you want a bit of everything, with restrictions/limitations) or the CE build (if you want everything x86, unrestricted, for a non-business use) and get started with reversing.

If you are interested in comparing outputs with GHIDRA, we have put up a Decompiler Comparison portal on the website.

We plan to publish the Release build later this month. Happy reversing 🙂

Reversing DexGuard, Part 3 – Code Virtualization

Reversing DexGuard: Part 1, Part 2, Part 3
Update #1: Feb 17 2021: improved support (4.0.1.202102180000+)

The third part of this series on DexGuard is about bytecode virtualization. The analyses that follow were done statically.

Bytecode virtualization is the most interesting and technically challenging feature of DexGuard. According to GuardSquare’s website, it was introduced in version 8.3 (mid 2019).

TL;DR:
– JEB Pro can un-virtualize methods virtualized by DexGuard 8.3+.
– A Global Analysis (Android menu) will point you to p-code VM routines.
– Make sure to disable Parse Exceptions when decompiling such methods.
– For even clearer results, rename DexGuard opaque predicates of the method to guard0/guard1

What Is Code Virtualization

Relatively novel, code virtualization is possibly one of the most effective protection technique there is 1. With it come relatively heavy disadvantages, such as hampered speed of execution 2 and the difficulty to troubleshoot production code. The advantages are heightened reverse-engineering hurdles over other more traditional software protection techniques.

Virtualization in the context of code protection means:

  • Generating a virtual machine M1
  • Translating an original code object C0 meant to be executed on a machine M0 3, into a semantically-equivalent code object C1, to be run on M1.

While the general features of M1 are likely to be fixed (e.g., all generations of M1 are stack machines with such and such characteristics), the Instruction Set Architecture (ISA) of M1 may not necessarily be. For example, opcodes, microcodes and their implementation may vary from generation to generation. As for C1, the characteristics of a generation are only constrained by the capabilities of the converter. Needless to say, standard obfuscation techniques can be applied on C1. The virtualization process can possibly be recursive (C1 could be a VM implementing the specifications of a machine M2, executing a code object C2, emulating the original behavior of C0, etc.).

All in all, in practice, this makes M1 and C1 unique and hard to reverse-engineer.

Before and after virtualization of a code object C0 into C1

Example of a Protected Method

Note: all identifier names had been obfuscated, as is almost always the case with DexGuard. They were renamed for clarity and understanding.

Below, the class VClass was found to be “virtualized”. A virtualized class means that all non-constructor (all but <init>(*)V and <clinit>()V) methods were virtualized.

Interestingly, DexGuard does not seem to virtualize constructors

The method d(byte[])byte[] is virtualized:

  • It was converted into an interpreter loop over two large switch constructs that branch on pseudo-code entries stored in the local array pcode.
  • A PCodeVM class was added. It is a modified stack-based virtual machine (more below) that performs basic load/store operations, custom loads/stores, as well as some arithmetic, binary and logical operations.
Virtualized method. Note the pcode array. The opcode handlers are located in two switches. This picture shows the second switch, used to handle specific operations and API calls.

A snippet of the p-code VM class. Full code here, also contains the virtualized class.

The generic interpreter is called via vm.exec(opcode). Execution falls back to a second switch entry, in the virtualized method, if the operation was not handled.

Please refer to the gist linked above for a full list of “generic” VM operations. Three examples, including one showing that the operations are not as generic as the term implies:

(specific to this VM) opcode 6, used to peek the most recently pushed object
(specific to this VM) opcode 8, a push-int operation
(specific to this VM) opcode 23 is relatively specialized, it implements an add-xor stack operation (pop, pop, push). It is quite interesting to see that the protection system does not simply generate one-to-one, dalvik-to-VM opcodes. Instead, the target routine is thoroughly analyzed, most likely lifted, high-level (compounded) arithmetic operations isolated, and pseudo-generic (in PCodeVM) or specialized (in the virtualized method) opcodes generated.

As said, negative opcodes represent custom operations specific to a virtualized method, including control flow changes. An example:

opcode -25: a if(a >=b) goto LABEL operation (first, call into opcode 55 to do a GE operation on the top two integers; then, use the result to do conditional branching)

Characteristics of the DexGuard P-code VM

From the analysis of that code as well as virtualized methods found in other binaries, the characteristics of the p-code VM generated by DexGuard can be inferred:

  • The VM is a hybrid stack machine that uses 5 parallel stacks of the same height, stored in arrays of:
    • java.lang.Object (accommodating all objects, including arrays)
    • int (accommodating all small integers, including boolean and char)
    • long
    • float
    • double
  • For each one of the 5 stack types above, the VM uses two additional registers for storing and loading
  • Two stack pointers are used: one indicates the stack TOP, the other one seems to be used more liberally, and is akin to a peek register
  • The stack has a reserved area to store the virtualized method parameters (including this if the method is non-static)
  • The ISA encoding is trivial: each instruction is exactly one-word long, it is the opcode of the p-code instruction to be executed. There is no concept of register, index, or immediate value embedded into the instruction, as most stack machine ISA’s have.
  • Because the ISA is so simple, the implementation of the semantics of an instruction falls almost entirely on the p-code handler. For this reason, they were grouped into two categories:
    • Semi-generic VM operations (load/store, arithmetic, binary, tests) are handled by the VM class and have a positive id. (A VM object is used by every virtualized method in a virtualized class.)
    • Operations specific to a given virtualized method (e.g., method invocations) use negative ids and are handled within the virtualized method itself.

P-code obfuscation: junk insertion, spaghetti code

While the PCodeVM opcodes are all “useful”, many specific opcodes of a virtualized method (negative ids) achieve nothing but the execution of code semantically equivalent to NOP or GOTO.

opcodes -2, -1: essentially branching instructions. A substantial amount of those can be found, including some branching to blocks with no other input but that source (i.e., an unnecessary GOTO – =spaghetti code -, or a NOP operation if the next block is the follow.)

Rebuilding Virtualized Methods

Below, we explain the process used to rebuild a virtualized method. The CFG’s presented are IR-CFG’s (Intermediate Representations) used by the dexdec 4 pipeline. Note that unlike gendec‘s IR 5, dexdec‘s IR is not exposed publicly, but its textual representation is mostly self-explanatory.

Overall, a virtualized routine, once processed by dexdec like any other routine, looks like the following: A loop over p-code entries (stored in x8 below), processed by a() at 0xE first, or by the large routine switch.

Virtualized method, optimized, virtualized

The routine a() is PCodeVM.exec(), and its optimized IR boils down to a large single switch. 6

PCodeVM.exec()

The unvirtualizer needs to identify key items in order to get started, such as the p-code entries, identifiers used as indices into the p-code array, etc. Once they have been gathered, concolic execution of the virtualized routine becomes possible, and allows rebuilding a raw version of the original execution flow. Multiple caveats need to be taken care of, such as p-code inlining, branching, or flow termination. In its current state, the unvirtualizer disregards exceptional control flow.

Below, a raw version of the unflattened CFG. Note that all operations are stack-based; the code itself has not been modified at this point, it still consists of VM stack-based operations.

Virtualized method after unflattening, raw

dexdec’s standard IR optimization passes (dead-code removal, constant and variable propagation, folding, arithmetic simplification, flow simplifications, etc.) clean up the code substantially:

Virtualized method after unflattening and IR optimizations (opt1)

At this stage, all operations are stack-based. The high-level code generated from the above would be quite unwieldy and difficult to analyze, although substantially better than the original double-switch.

The next stage is to analyze stack-based operations to recover stack slots uses and convert them back to identifiers (which can be viewed as virtual registers; essentially, we realize the conversion of stack-based operations into register-based ones). Stack analysis can be done in a variety of ways, for example, using fixed-point analysis. Again, several caveats apply, and the need to properly identify stacks as well as their indices is crucial for this operations.

Virtualized method after unflattening, IR optimizations, VM stack analysis (opt2)

After another round of optimizations:

Virtualized method after unflattening, IR optimizations, VM stack analysis, IR optimizations (opt2_1)

Once the stack analysis is complete, we can replace stack slot accesses by identifier accesses.

Virtualized method after unflattening, IR optimizations, VM stack analysis, IR optimizations, virtual registers insertion (opt3)

After a round of optimizations:

Virtualized method after unflattening, IR optimizations, VM stack analysis, IR optimizations, virtual registers insertion, IR optimizations (opt3)

At this point, the “original” CFG is essentially reconstructed, and other advanced deobfuscation passes (e.g., emulated-based deobfuscators) can be applied.

The high-level code generation yields a clean, unvirtualized routine:

High-level code, unvirtualized, unmarked

After reversing, it appears to be a modified RC4 algorithm. Note the +3/+4 added to the key.

High-level code, unvirtualized, marked

Detecting Virtualized Methods

All versions of JEB detect methods and classes virtualized by DexGuard: run Global Analysis (GUI menu: Android) on your APK/DEX and look for those special events:

dexdec event:
“Found DexGuard Virtualized routine handler (P-Code VM, can be found in DexGuard>=8.3)”

JEB Pro version 3.22 7 ships with the unvirtualizer module.

Tips:

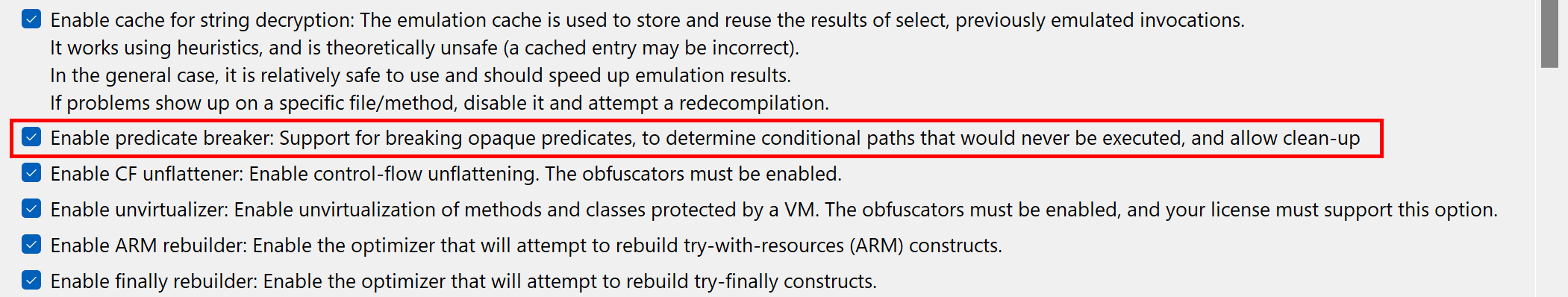

  • Make sure to enable the Obfuscators, and enable DexGuard Unvirtualization (enabled by default in the options).
  • The try-blocks analysis must be disabled for the class to unvirtualize. (Use MOD1+TAB to redecompile, untick “Parse Exception Blocks”).
  • After a first decompilation pass, it may be easier to identify guard0/guard1, rename, and recompile, else OP obfuscation will remain and make the code unnecessarily difficult to read. (Refer to part 1 of this series to learn about what renaming those fields to those special names means and does when DexGuard is detected.)

Conclusion

We hope you enjoyed this third installment on code (un)virtualization.

There will likely be a fourth and final chapter to this series on native code protection. Until next time!

  1. On a personal note, my first foray into VM-based protection dates back to 2009 with the analysis of Trojan.Clampi, a Windows malware protected with VMProtect
  2. Although one could argue that with current hardware (fast x64/ARM64 processors) and software (JIT’er and AOT compilers), that drawback may not be as relevant as it used to be.
  3. Machine here may be understood as physical machine or virtual machine
  4. dexdec is JEB’s dex decompiler engine
  5. gendec is JEB’s generic decompilation pipeline
  6. Note the similarities with CFG flattened by chenxification and similar techniques. One key difference here is that the next block may be determined using the p-code array, instead of a key variable, updated after each operation. I.e., is the FSM – controlling what the next state (= the next basic block) is – embedded in the flattened code itself, or implemented as a p-code array.
  7. JEB Android and JEB demo builds do not ship the unvirtualizer module. I initially wrote this module as a proof-of-concept not intended for release, but eventually decided to offer it to our professional users who have legitimate (non malicious) use cases, e.g. code audits and black-box assessments.

Reversing DexGuard, Part 2 – Assets and Code Encryption

Reversing DexGuard: Part 1, Part 2, Part 3

The second part of this series on DexGuard focuses on encryption:

  • Asset encryption
  • Class encryption
  • Full application encryption

Those analyses were done statically using JEB 3.21.

Asset Encryption

DexGuard can encrypt assets, while combining other techniques, such as class encryption (seen in several high-profile apps), and bytecode obfuscation (control-flow obfuscation, string encryption, reflected API access). With most bytecode obfuscation being automatically cleaned up, Assets are being accessed in the following way:

Purple and cyan tokens represent auto-decrypted code. The assets decryptor method was renamed to ‘dec’, it provides a FilterInputStream that transparently decrypts contents.
The DecryptorFilterStream (renamed) factory method

The DecryptorFilterStream object implements a variant of TEA (Tiny Encryption Algorithm), known for its simplicity of implementation and great performance 1.

Note the convoluted generation of Q_w, instead of hard-coding the immediate 0x9E37. Incidentally, a variant of that constant is also used by RC5 and RC6.
read() decrypts and buffers 64 bits of data at a time. The decryption loop consists of a variable number of rounds, between 5 and 16. Note that Q_w is used as a multiplier instead of an offset, as TEA/XTEA normally does.

It seems reasonable to assume that the encryption and decryption algorithms may not always be the same as this one. DexGuard making extensive use of polymorphism throughout its protection layers, it could be the case that during the protection phase, the encryption primitive is either user-selected or selected semi-randomly.

JEB can automatically emulate throughout this code and extract assets, and in fact, this is how encrypted classes, described in the next section, were extracted for analysis. However, this functionality is not present in current JEB Release builds. Since the vast majority of DexGuard uses are legitimate, we thought that shipping one-click auto-decryptors for data and code at this time was unnecessary, and would jeopardize the app security of several high-profile vendors.

Class Encryption

Class encryption, as seen in multiple recent apps as well, works as follows:

  • The class to be protected, CP, is encrypted, compressed, and stored in a file within the app folder. (The filename is random and seems to be terminated by a dot, although that could easily change.) Once decrypted, the file is a JAR containing a DEX holding CP and related classes.
  • CP is managed by a custom ClassLoader, CL.
  • CL is also encrypted, compressed, and stored in a file within the app folder. Once decrypted, the file is a JAR containing a DEX holding the custom class loader CL.
  • Within the application, code using CP (that is, any client that loads CP, invokes CP methods, or accesses CP fields) is replaced by code using CM, a class manager responsible for extracting CP and CL, and loading CL. CM offers bridge methods to the clients of CP, in order to achieve the original functionality.

The following diagram summarizes this mechanism:

DexGuard class encryption mechanism

Since applications protected with DexGuard use its extensive RASP (Runtime Application Self-Protection) facility to validate the environment they’re running on, the dynamic retrieval of CL and CP may prove difficult. In this analysis, it was retrieved statically by JEB.

Below, some client code using CM to create an encrypted-class object CP and execute a method on it. Everything is done via reflection. Items were renamed for enhanced clarity.

Encrypted class loading and virtual method invocation

CM is a heavy class, highly obfuscated. The first step in understanding it is to:

With auto-decryption and auto-unreflection enabled, the result is quite readable. A few snippets follow:

Decrypted files are deleted after loading. On older devices, loading is done with DexFile; on newer devices, it is done using InMemoryDexClassLoader.
In this case, the first encrypted JAR file (holding CL) is stored as “/e.”.
In this case, the second encrypted JAR file (holding CP and related) is stored as “/f.”.
The application held two additional couples, (“/a.”, “/b.”) and (“/c.”, “/d.”)

Once retrieved, those additional files can easily be “added” to the current DEX unit with IDexUnit.addDex() of your JEB project. Switch to the Terminal fragment, activate the Python interpreter (use py), and issue a command like:

Using Jython’s to add code to an existing DEX unit
The bnz class (CL) is a ClassLoader for the protected class (CP).

The protected class CP and other related classes, stored in “/f.” contained… anti-tampering verification code, which is part of DexGuard’s RASP facility! In other instances that were looked at, the protected classes contained: encrypted assets manager, custom code, API key maps, more RASP code, etc.

Full Application Encryption

“Full” encryption is taking class encryption to the extreme by encrypting almost all classes of an application. A custom Application object is generated, which simply overloads attachBaseContext(). On execution, the encrypted class manager will be called to decrypt and load the “original” application (all DexGuard protections still apply).

Custom application object used to provide full program encryption.

Note that activities can be encrypted as well. In the above case, the main activity is part of the encrypted jar.

Conclusion

That’s it for part 2. We focused on the encryption features of DexGuard. Both offer relatively limited protection for reverse-engineers willing to go the extra mile to retrieve original assets and bytecodes.

In Part 3, we will present what I think is the most interesting feature of DexGuard: code virtualization.

Until next time!

  1. The TEA encryption family is used by many win32 packers

Reversing DexGuard, Part 1 – Code Obfuscation & RASP

Reversing DexGuard: Part 1, Part 2, Part 3

GuardSquare’s DexGuard, the commercial offshoot of ProGuard geared toward Android app protection, has grown significantly since its introduction in 2013. Technically, what started as a “ProGuard + basic string encryption + code reflection” tool evolved into a multi-platform, complex solution including: control-flow obfuscation, complex and varied data and resources encryption, bytecode encryption, virtual environment and rooted system detection, application signature and certificate pinning enforcement, native code protection, as well as bytecode virtualization 1, and more.

GuardSquare seems to be keeping a tight lid on their product’s specs, as their website does not provide public datasheet or white papers. In this series, we present the result of reverse-engineering several recent apps protected with DexGuard.

This article presents the obfuscation techniques used by DexGuard, as well as DexGuard facility made available at runtime to protected programs 2. The analysis that follows was done statically, with JEB 3.20.

Identification

Identifying apps protected by DexGuard is relatively easy. It seems the default bytecode obfuscation settings place most classes in the o package, and some will be renamed to invalid names on a Windows system, such as con or aux. That being said, DexGuard’ed apps may not be as easily identified. Closer inspection of the code will reveal stronger hints than obfuscated names: decryption stubs, specific encrypted data, the presence of some so library files, are all tell tale signs of DexGuard, as shown below.

Running a Global Analysis

Let’s run a Global Analysis (menu Android, Global analysis…) with standard settings on the file and see what gets auto-decrypted and auto-unreflected:

Results subset of Global Analysis (redacted areas are meant to keep the analyzed program anonymous; it is a clean app, whose business logic is irrelevant to the analysis of DexGuard)

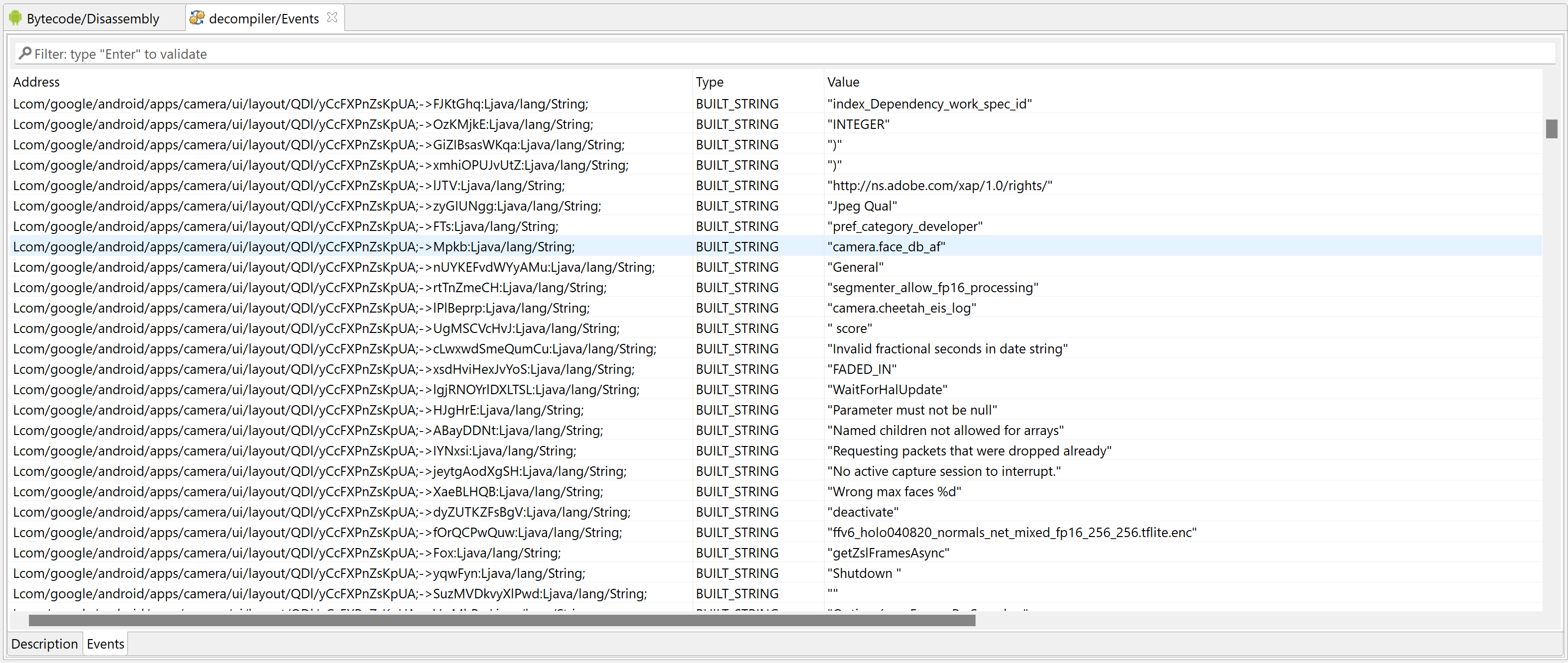

Lots of strings were decrypted, many of them specific to the app’s business logic itself, others related to DexGuard RASP – that is, library code embedded within the APK, responsible for performing app signature verification for instance, which is itself protected by DexGuard. That gives us valuable pointers into where we should be looking at if we’d like to focus on the protection code specifically.

Deobfuscating Code

The first section of this blog focuses on bytecode obfuscation and how JEB deals with it. It is mostly automated, but a final step requires manual assistance to achieve the best results.

Most obfuscated routines exhibit the following characteristics:

  • Dynamically generated strings via the use of per-class decryption routines
  • Most calls to external routines are done via reflection
  • Flow obfuscation via the use of a couple of opaque integer fields – let’s call them OPI0, OPI1. They are class fields generally initialized to 0 and 1.
  • Arithmetic operation obfuscation
  • Garbage code insertion
  • Unusual protected block structure, leading to fragmented try-blocks, unavoidable to produce semantically accurate raw code

As an example, the following class is used to perform app certificate validation in order, for instance, to prevent resigned apps from functioning. A few items were renamed for clarity; decompilation is done with disabled Deobfuscators (MOD1+TAB, untick “Enable deobfuscators”):

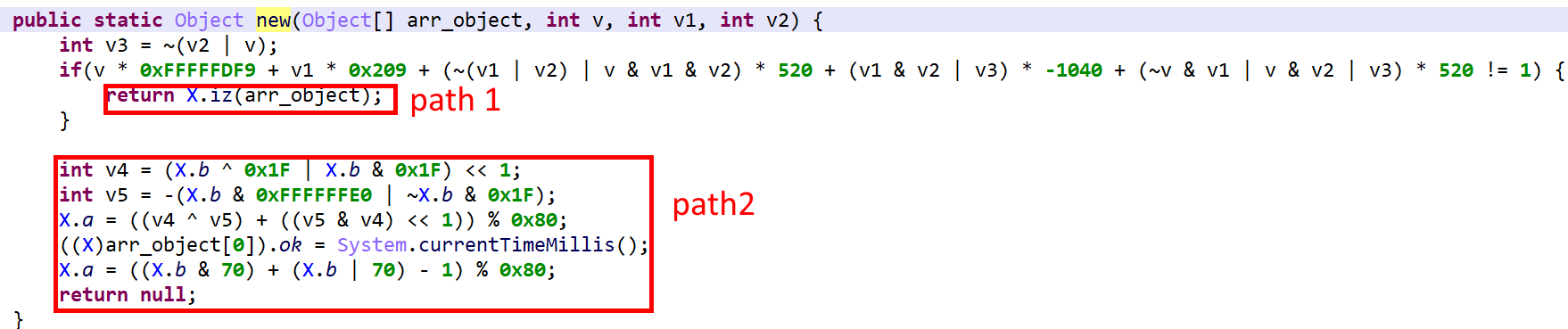

Take #1 (snippet) – The protected class is decompiled without deobfuscation in order to show semi-raw output (a few optimizers doing all sort of code cleanup are not categorized as deobfuscators internally, and will perform even if Deobfuscation is disabled). Note that a few items were also renamed for clarity.

In practice, such code is quite hard to comprehend on complex methods. With obfuscators enabled (the default setting), most of the above will be cleared.

See the re-decompilation of the same class, below.

  • strings are decrypted…
  • …enabling unreflection
  • most obfuscation is removed…
  • except for some control flow obfuscation that remains because JEB was unable to process OPI0/OPI1 directly (below,
Take #2 (full routine) – obfuscators enabled (default). The red blocks highlight use of opaque variables used to obfuscate control flow.

Let’s give a hint to JEB as to what OPI0/OPI1 are.

  • When analyzing DexGuard’ed apps, you can rename OPI0 and OPI1 to guard0 and guard1, respectively, to allow JEB go aggressively clean the code
  • Redecompile the class after renaming the fields
Take #3 (full routine) – with explicit guard0/guard1

That final output is clean and readable.

Other obfuscation techniques not exposed in this short routine above are arithmetic obfuscation and other operation complexification techniques. JEB will seamlessly deal with many of them. Example:

is optimized to

To summarize bytecode obfuscation as of DexGuard 8.4:

  • decryption and unreflection is done automatically 3
  • garbage clean-up, code clean-up is also generic and done automatically
  • control flow deobfuscation needs a bit of guidance to operate (guard0/guard1 renaming)

Runtime Verification

RASP library routines are used at the developers’ discretion. They consist of a set of classes that the application code can call at any time, to perform tasks such as:

  • App signing verification
  • Debuggability/debugger detection
  • Emulator detection
  • Root detection
  • Instrumentation toolkits detection
  • Certificate pinning
  • Manifest check
  • Permission checks

The client decides when and where to use them as well as what action should be taken on the results. The code itself is protected by DexGuard, that goes without saying.

App Signing Verification

  • Certificate verification uses the PackageManager to retrieve app’s signatures: PackageManager.getPackageInfo(packageName, GET_SIGNATURES).signatures
  • The signatures are hashed and compared to caller-provided values in an IntBuffer or LongBuffer.

Debug Detection

Debuggability check

The following checks must pass:

  • assert that Context.ctx.getApplicationInfo().flags & ApplicationInfo.FLAG_DEBUGGABLE is false
  • check the ro.debuggable property, in two ways to ensure consistency
    • using android.os.SystemProperties.get() (private API)
    • using the getprop‘s binary
  • verify that no hooking framework is detected (see specific section below)

Debugging session check

The following checks must pass:

  • assert that android.os.Debug.isDebuggerConnected() is false
  • verify no tracer process: tracerpid entry in /proc/<pid>/status must be <= 0
  • verify that no hooking framework is detected (see specific section below)

Debug key signing

  • enumerate the app’s signatures via PackageInfo.signatures
  • use getSubjectX500Principal() to verify that no certificate has a subject distinguished name (DN) equals to "CN=Android Debug,O=Android,C=US", which is the standard DN for debug certificates generated by the SDK tools

Emulator Detection

Emulator detection is done by checking any of the below.

1) All properties defined in system/build.prop are retrieved, hashed, and matched against a small set of hard-coded hashes:

86701cb958c69d64cd59322dfebacede -> property ???
19385aafbb452f39b5079513f668bbeb -> property ???
24ad686ec83d904347c5a916acbe1779 -> property ???
b8c8255febc6c46a3e43b369225ded3e -> property ???
d76386ddf2c96a9a92fc4bc8f829173c -> property ???
15fed45d5ca405da4e6aa9805daf2fbf -> property ??? (unused)

Unfortunately, we were not able to reverse those hashes back to known property strings – however, it was tried only on AOSP emulator images. If anybody wants to help and run the below on other build.prop files, feel free to let us know what property strings those hashes match to. Here is the hash verification source, to be run be on build.prop files.

2) The following file is readable:

/sys/devices/system/cpu/cpu0/cpufreq/cpuinfo_cur_freq

3) Verify if any of those qemu, genymotion and bluestacks emulator files exist and are readable:

/dev/qemu_pipe
/dev/socket/baseband_genyd
/dev/socket/genyd
/dev/socket/qemud
/sys/qemu_trace
/system/lib/libc_malloc_debug_qemu.so
/dev/bst_gps
/dev/bst_time
/dev/socket/bstfolderd
/system/lib/libbstfolder_jni.so

4) Check for the presence of wired network interfaces: (via NetworkInterface.getNetworkInterfaces)

eth0
eth1

5) If the app has the permission READ_PHONE_STATE, telephony information is verified, an emulator is detected if any of the below matches (standard emulator image settings):

- "getLine1Number": "15555215554", "15555215556", "15555215558", "15555215560", "15555215562", "15555215564", "15555215566", "15555215568", "15555215570", "15555215572", "15555215574", "15555215576", "15555215578", "15555215580", "15555215582", "15555215584"
- "getNetworkOperatorName": "android"
- "getSimSerialNumber": "89014103211118510720"
- "getSubscriberId": "310260000000000"
- "getDeviceId": "000000000000000", "e21833235b6eef10", "012345678912345"

6) /proc checks:

/proc/ioports: entry "0ff :" (unknown port, likely used by some emulators)
/proc/self/maps: entry "gralloc.goldfish.so" (GF: older emulator kernel name)

7) Property checks (done in multiple ways with a consistency checks, as explained earlier), failed if any entry is found and start with one of the provided values:

- "ro.product.manufacturer": "Genymotion", "unknown", "chromium"
- "ro.product.device": "vbox86p", "generic", "generic_x86", "generic_x86_64"
- "ro.product.model": "sdk", "emulator", "App Runtime for Chrome", "Android SDK built for x86", "Android SDK built for x86_64"
- "ro.hardware": "goldfish", "vbox86", "ranchu"
- "ro.product.brand": "generic", "chromium"
- "ro.kernel.qemu": "1"
- "ro.secure": "0"
- "ro.build.product": "sdk", "vbox86p", "full_x86", "generic_x86", "generic_x86_64"
- "ro.build.fingerprint": "generic/sdk/generic", "generic_x86/sdk_x86/generic_x86", "generic/google_sdk/generic", "generic/vbox86p/vbox86p", "google/sdk_gphone_x86/generic_x86"
- "ro.bootloader": "unknown"
- "ro.bootimage.build.fingerprint": "Android-x86"
- "ro.build.display.id": "test-"
- "init.svc.qemu-props" (any value)
- "qemu.hw.mainkeys" (any value)
- "qemu.sf.fake_camera" (any value)
- "qemu.sf.lcd_density" (any value)
- "ro.kernel.android.qemud" (any value)

Hooking Systems Detection

The term covers a wide range of techniques designed to intercept regular control flow in order to examine and/or modify execution.

1) Xposed instrumentation framework detection, by attempting to load any of the classes:

de.robv.android.xposed.XposedBridge
de.robv.android.xposed.XC_MethodHook

Class loading is done in different ways in an attempt to circumvent hooking itself, using Class.forName with a variety of class loaders, custom class loaders and ClassLoader.getLoadedClass, as well as lower-level private methods, such as Class.classForName.

2) Cydia Substrate instrumentation framework detection.

3) ADBI (Android Dynamic Binary Instrumentation) detection

4) Stack frame verification: an exception is generated in order to retrieve a stack frame. The callers are hashed and compared to an expected hard-coded value.

5) Native code checks. This will be detailed in another blog, if time allows.

Root Detection

While root detection overlaps with most of the above, it is still another layer of security a determined attacker would have to jump over (or walk around) in order to get protected apps to run on unusual systems. Checks are plenty, and as is the case for all the code described here, heavily obfuscated. If you are analyzing such files, keeping the Deobfuscators enabled and providing guard0/guard1 hints is key to a smooth analysis.

Static initializer of the principal root detection class. Most artifacts indicative of a rooted device are searched for by hash.

Build.prop checks. As was described in emulator detection.

su execution. Attempt to execute su, and verify whether su -c id == root

su presence. su is looked up in the following locations:

/data/local/
/data/local/bin/
/data/local/xbin/
/sbin/
/system/bin/
/system/bin/.ext/
/system/bin/failsafe/
/system/sd/xbin/
/system/usr/we-need-root/
/system/xbin/

Magisk detection through mount. Check whether mount can be executed and contains databases/su.db (indicative of Magisk) or whether /proc/mounts contains references to databases/su.db.

Read-only system partitions. Check if any system partition is mounted as read-write (when it should be read-only). The result of mount is examined for any of the following entries marked rw:

/system
/system/bin
/system/sbin
/system/xbin
/vendor/bin
/sbin
/etc

Verify installed apps in the hope of finding one whose package name hashes to the hard-coded value:

0x9E6AE9309DBE9ECFL

Unfortunately, that value was not reversed, let us know if you find which package name generates this hash – see the algorithm below:

    public static long hashstring(String str) {
        long h = 0L;
        for(int i = 0; i < str.length(); i++) {
            int c = str.charAt(i);
            h = h << 5 ^ (0xFFFFFFFFF8000000L &amp; h) >> 27 ^ ((long)c);
        }
        return h;
    }

NOTE: App enumeration, as is common with DexGuard, is performed in two ways to maximize chances of evading partial hooks.

  • Straightforward: PackageManager.getInstalledApplications
  • More convoluted: iterate over all known MAIN intents: PackageManager.queryIntentActivities(new Intent("android.intent.action.MAIN")), derive the package name from the intent via ResolveInfo.activityInfo.packageName

SElinux verification. If the file /sys/fs/selinux/policy cannot be read, the check immediately passes. If it is readable, the policy is examined and hints indicative of a rooted device are looked for by hash comparison:

472001035L
-601740789L

The hashing algorithm is extremely simple, see below. For each byte of the file, the crc is updated and compared to hard-coded values.

long h = 0L;
//for each byte:
    h = (h << 5 ^ ((long)(((char)b)))) &amp; 0x3FFFFFFFL;
    // check h against known list

Running processes checks. All running processes and their command-lines are enumerated and hashed, and specific values are indirectly looked up by comparing against hard-coded lists.

APK Check

This verifier parses compressed entries in the APK (zip) file and compares them against well-known, hard-coded CRC values.

Manifest Check

Consistency checks on the application Manifest consists of enumerating the entries using two different ways and comparing results. Discrepancies are reported.

  • Open the archive’s MANIFEST.MF file via Context.getAssets(), parse manually
  • Use JarFile(Context.getPackageCodePath()).getManifest().getEntries()

Discrepancies in the Manifest could indicate system hooks attempting to conceal files added to the application.

Permissions Check

This routine checks for permission discrepancies between what’s declared by the app and what the system grant the app.

  • Set A: App permission gathering: all permissions requested and defined by the app, as well as all permissions offered by the system, plus the INTERACT_ACROSS_USERS and INTERACT_ACROSS_USERS_FULL permissions,
  • Set B: Retrieve all permissions that exist on the system
  • Define set C = B – A
  • For every permission in C, use checkCallingOrSelfPermission (API 22-) or checkSelfPermission (API 23+) to verify that the permission is not granted.

Permission discrepancies could be used to find out system hooks or unorthodox execution environments.

Note the “X & -(A+1) | ~X & A” checks. DexGuard makes use of multiple arithmetic tricks to complicate the obfuscation flow. Here, that expression is never equals to v2, and therefore, the if-check will always fail. JEB 3.20 does not clean all those artifacts.

Miscellaneous

Other runtime components include library code to perform SSL certificate pinning, as well as obfuscated wrappers around web view clients. None of those are of particular interest.

Wrapper for android.webkit.WebViewClient. Make sure to enable deobfuscators and provide guardX hints. When this is done, most methods will be crystal clear. In fact, the majority of them are simple forwarders.

Conclusion

That’s it for DexGuard obfuscation and runtime protection facility. Key take-away to analyze DexGuard’ed code:

  • Keep the obfuscators enabled
  • Locate the opaque integers, rename them to guard0/guard1 to give JEB a hint on where control flow deobfuscation should be performed, and redecompile the class

The second part in the series presents bytecode encryption and assets encryption.

  1. VM in VM, repeat ad nauseam – something not new to code protection systems, it’s existed on x86 for more than a decade, but new on Android, and other players in this field, commercial and otherwise, seem to be implementing similar solutions.
  2. So-called “RASP”, a relatively new acronym for Runtime Application Self-Protection
  3. Decryption and unreflection are generic processes of dexdec (the DEX Decompiler plugin); there is nothing specific to DexGuard here. The vast majority or encrypted data, regardless of the protection system in place, will be decrypted.

Improved Documentation and Manual for JEB

We have refreshed and added lots of contents to our online manual for JEB. Have a look at it here:

You will also find a copy of this manual for offline viewing in the [JEB]/doc/manual folder.

In particular, those pages contain lots of material:

It is still a work-in-progress, and more contents is added to it regularly. We are planning to kee the manual properly sync’ed with JEB’s capabilities. The next page that will receive a very large update is the Native Code Analysis section.

Again, thank you for your support. Drop us a line at support@pnfsoftware.com or come over on our Slack channel.

JEB Android Updates – Generic String Decryption, Lambda Recovery, Unreflecting Code, and More

Updated on March 11.

A note about 2020 Q1 updates (versions 3.10 to 3.16) regarding the DEX/Dalvik decompiler modules:

  • Generic String Decryption
  • Lambda Recovery
  • Unreflecting Code
  • Decompiling Java Bytecode
  • Auto-Rename All

Generic String Decryption

JEB ships with a generic deobfuscator that can perform on-the-fly string decryption and other complex optimizations. Although this optimizer performs safe (i.e., guaranteed) optimizations in most cases, it is unsafe in the general case case and therefore, may be disabled in the options. Refer to the Engines options .parsers.dcmp_dex.EnableDeobfuscators and .parsers.dcmp_dex.EmulationSupport.

Many code protectors such as DexGuard, Arxan, Dash-O, Allatori, etc. offer options to replace immediate string constants by method invocations that perform on-the-fly decryption.

A variety of techniques exist, ranging from simple one-off trivial decryptor methods, to complex schemes involving object(s) creation, complicated decryptors injected in third-party packages, non-trivial logic, junk code meant to slow down analyzers, use of opaque predicates, etc. They are implemented in an infinite number of ways. JEB’s generic deobfuscator can perform quick, safe emulation of the intermediate representation to provide a replacement. It may sometimes fail or bail out due to several reasons, such as performance or pitfalls like anti-emulation and anti-sandboxing techniques.

Example 1

The string decryptor is a static method reading encrypted string data in a class byte array. Also note that code reflection is used.

The above code (blue box) ends up being deobfuscated to:

Example 2:

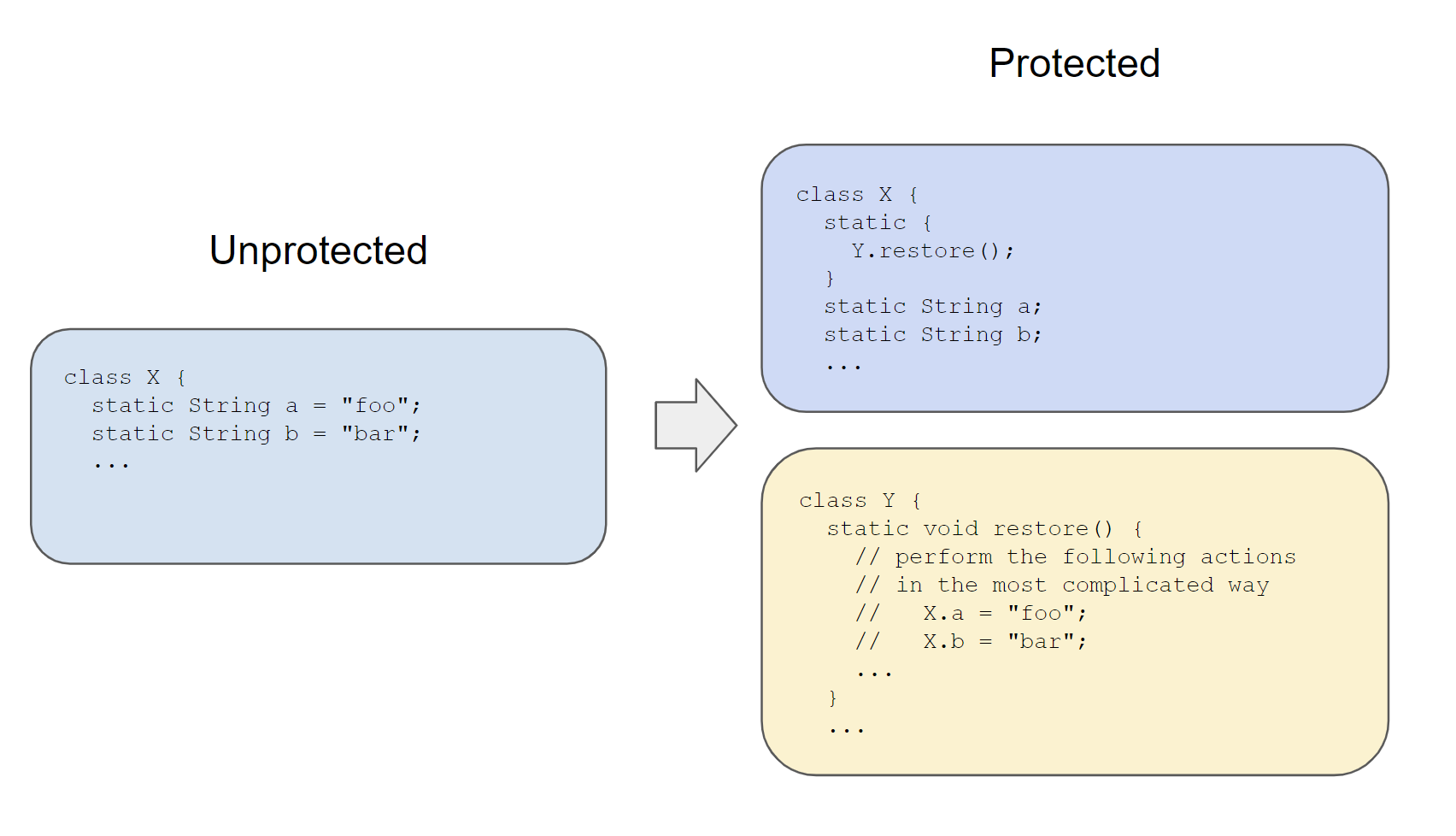

The decryption methods were injected into library packages, e.g. Gson’s

The above code is deobfuscated to:

With the generic string decryptor optimizer ON

Below, a decryptor that had been injected into the com.google.gson.Gson() class:

The concat(String, int) method is not part of standard Gson, of course. It was injected by the protector and is used by (some) code to perform on-the-fly string decryption.

Example 3:

One last example, which was involuntarily – yet, quite timely! – provided by a user:

Static fields initialized with decrypted strings.
After decryption.

Decrypting all strings: The decryptor kicks in when decompiling methods only. At the moment, if a string happens to be successfully decrypted, the optimizer does not attempt to recover all similarly encrypted strings in the code, although it is most certainly an addition that will make it in a future software update.

Rendering: You may quickly identify decrypted strings in the client as they are rendered using a special color associated with the itemId STRING_GENERATED, by default rendered in a flashy pink color in light and dark themes. Hovering over such items will bring up a pop-up with additional origin information, like the underlying code that would have generated that string:

Auto-decrypted strings in pink; overlays with source/origin information.

API:
– From a DEX perspective: Generated strings are artificial. Therefore, IDexString.isArtificial() would return true.
– From a Java/AST perspective: IJavaConstant objects that embed origin information do so using the “origin” tag. Use IJavaConstant.getTags().get("origin") to retrieve it.

Lambda Recovery

JEB attempts to perform Java 8 style lambda recovery and reconstruction.

Desugared Lambdas

Recovery and reconstruction does not rely on any type of metadata 1, such as special prefixes -$$Lambda$ for classes and methods implementing desugared lambdas in dex 37-.

You may therefore see constructs like this:

This DEX file contains desugared, non-obfuscated lambdas.
This DEX file contained desugared, obfuscated lambdas

Options: Lambda reconstruction can be disabled in the options (Edit, Options, Engines, …). Lambda rendering can also be disabled in the options, as well as on-demand by right-clicking a decompiled view, Rendering Options….

Lambdas options

API Note: In the above cases, the underlying Java AST may be a IJavaNew or IJavaStaticField node. This is not the case for real (not desugared) lambdas, which map to an IJavaCall node – see below.

Real Lambdas

Lambda reconstruction also takes place when the code has not been desugared (which is rare!), i.e. code relying on dex38’s invoke-custom and invoke-polymorphic.

This DEX file contains real lambdas implemented via invoke-custom

API Note: Such lambdas map to an IJavaCall node for which isCustomCall() will return true.

Unreflecting Code

Many code protectors make heavy use of reflection – combined with string encryption, as we’ll see below – to obfuscate code. In practice, reflection is limited to method invocation (static and virtual), static and non-static field setting and getting, and new instance creation. A few examples:

v = Class.forName("java.lang.Integer").getMethod("valueOf",
        String.class).invoke(null, str);
// instead of
v = Integer.valueOf(str);
Class.forName("SomeClassName").getField("b").setInt(x, 4);
// instead of
x.b = 4;
Class.forName("java.lang.String").getConstructor(byte[].class)
        .newInstance(val);
// instead of
new String(arg6);

Such code is generally protected by a catch-all handler that forwards the cause of any exception raised by a reflection issue:

try {
    // ...
}
catch(Throwable e) {
    throw e.getCause();
}

By default, JEB will attempt to unreflect code. This deobfuscator is potentially unsafe and may be disabled in the options. Note that you always have the ability to choose, for a particular decompilation, whether some options should be temporarily enabled or disabled, by pressing CTRL+TAB (or COMMAND+TAB on macOS) to decompile (same as menu Action, Decompile with options…).

Unsafe deobfuscators can be globally disabled.

So, in a nutshell, code normally decompiled to:

Reflection, not cleaned (malware obfuscated by an older version of DexGuard (?))

will be decompiled to:

With reflection cleaned

Technical Note: This optimizer works on the Intermediate Representation manipulated by the decompiler, not to be confused with the AST rendered as its output. (The AST cleaner that was described in an older post is more limited than this IR optimizer.)

Last-step failures: Successfully unreflecting code eventually depends on being able to find the intended target method or field matching the provided description (method parameter types or field type). Failure to do so will generate a log like "A candidate field/method/constructor for unreflection was not found".

Decompiling Java Bytecode

JEB supports JLS bytecode decompilation for *.class files and jar-like archives (jar, war, ear, etc.). The Java bytecode is converted to Dalvik using Android’s dx by default. Users may choose to use d8 (not recommended for now) instead by selecting so in the Options.

The resulting DEX file(s) are processed as usual.

You may use this to decompile Android Library files (*.aar files) in JEB.

Examining the android-arch-core-runtime library

Auto-Rename All

JEB 3.13 introduced a new generic action, Auto-Rename All. Its implementation is at the discretion of code plugins. The DEX plugin implements it, therefore users may execute Action, Auto-Rename All… at any time (generally after processing an obfuscated file) in order to rename code items such as field, method, or class names, to something more easily processable for our -limited- human brains.

Look at this horrendous obfuscation scheme below. It’s using right-to-left unicode characters to seriously mess up rendering:

Obfuscated name using RTL Arabic characters

Let’s run Action, Auto-Rename All… on this file:

Auto-Renaming capabilities are provided (optionally) by plugins.
After auto-renaming code items in the above file. Not clearer in terms of meaning, but at least, it’s something we can start working on.

As usual, feel free to join us on Slack, message us on Twitter, or email us privately at support@pnfsoftware.com.

Until next time!

  1. Relying on metadata leads to false negatives in the best case – e.g., when the code has been minified by something like ProGuard; it leads to false positives in the worst case – e.g. forged metadata to incite the decompiler to generate inaccurate or wrong code.

Analyzing Golang Executables

The Go programming language (also known as Golang) has gained popularity during the last few years among malware developers . This can certainly be explained by the relative simplicity of the language, and the cross-compilation ability of its compiler, allowing multi-platform malware development without too much effort.

In this blog post, we dive into Golang executables reverse engineering, and present a Python extension for JEB decompiler to ease Golang analysis; here is the table of content:

  1. Golang Basics for Reverse Engineers
  2. Making JEB Great for Golang
    1. Current Status
    2. Finding (and Naming) Routines
    3. Strings Recovery
    4. Types Recovery
  3. Use-Case: Analysis of StealthWorker Malware

The JEB Python script presented in this blog can be found on our GitHub page. Make sure to update JEB to version 3.7+ before running it.

Disclaimer: the analysis in this blog post refers to the current Golang version (1.13) and part of it might become outdated with future releases.

Golang Basics for Reverse Engineers

Feel free to skip this part if you’re already familiar with Golang reverse engineering.

Let’s start with some facts that reverse engineers might find interesting to know before analyzing their first Golang executable.

1. Golang is an open-source language with a pretty active development community. The language was originally created at Google around 2007, and version 1.0 was released in March 2012. Since then, two major versions are released each year.

2. Golang has a long lineage: in particular many low-level implementation choices — some would say oddities — in Golang can be traced back to Plan9, a distributed operating system on which some Golang creators were previously working.

3. Golang has been designed for concurrency, in particular by providing so-called “goroutines“, which are lightweight threads executing concurrently (but not necessarily in parallel).

Developers can start a new goroutine simply by prefixing a function call by go. A new goroutine will then start executing the function, while the caller goroutine returns and continues its execution concurrently with the callee. Let’s illustrate that with the following Golang program:

func myDummyFunc(){
	time.Sleep(1 * time.Second)
	fmt.Println("dummyFunc executed")
}

func main(){

	myDummyFunc() // normal call
	fmt.Println("1 - back in main")

	go myDummyFunc() // !! goroutine call
	fmt.Println("2 - back in main")

	time.Sleep(3 * time.Second)
}

Here, myDummyFunc() is called once normally, and then as a goroutine. Compiling and executing this program results in the following output:

dummyFunc executed
1 - back in main
2 - back in main
dummyFunc executed

Notice how the execution was back in main() before executing the second call to dummyFunc().

Implementation-wise, many goroutines can be executed on a single operating system thread. Golang runtime takes care of switching goroutines, e.g. whenever one executes a blocking system call. According to the official documentationIt is practical to create hundreds of thousands of goroutines in the same address space“.

What makes goroutines so “cheap” to create is that they start with a very limited stack space (2048 bytes — since Golang 1.4), which will be increased when needed.

One of the noticeable consequence for reverse engineers is that native routines (almost) all start with the same prologue. Its purpose is to check if the current goroutine’s stack is large enough, as can be seen in the following CFG:

Fig. 1: Simplified x86 CFG with Golang prologue for stack growth

When the stack space is nearly exhausted, more space will be allocated — actually, the stack will be copied somewhere with enough free space. This particular prologue is present only in routines with local variables.

How to distinguish a goroutine call from a “normal” call when analyzing a binary? Goroutine calls are implemented by calling runtime.newproc, which takes in input the address of the native routine to call, the size of its arguments, and then the actual routine’s arguments.

4. Golang has a concurrent garbage collector (GC): Golang’s GC can free memory while other goroutines are modifying it.

Roughly speaking, when the GC is freeing memory, goroutines report to it all their memory writes — to prevent concurrent memory modifications to be missed by the current freeing phase. Implementation-wise, when the GC is in the process of marking used memory, all memory writes pass through a “write barrier, which performs the write and informs the GC.

For reverse engineers this can result in particularly convoluted control flow graphs (CFG). For example, here is the CFG when a global variable globalString is set to newValue:

Fig. 2: Write to global variable globalString (x86 CFG):
before doing the memory write, the code checks if the write barrier is activated,
and if yes calls runtime.gcWriteBarrier()

Not all memory writes are monitored in that manner; the rules for write barriers’ insertion are described in mbarrier.go.

5. Golang comes with a custom compiler tool chain (parser, compiler, assembler, linker), all implemented in Golang. 1 2

From a developer’s perspective, it means that once Go is installed on a machine, one can compiled for any supported platform (making Golang a language of choice for IoT malware developers). Examples of supported platforms include Windows x64, Linux ARM and Linux MIPS (see “valid combinations of $GOOS and $GOARCH“).

From a reverse engineer’s perspective, the custom Go compiler toolchain means Golang binaries sometimes come with “exotic” features (which therefore can give a hard time to reverse engineering tools).

For example, symbols in Golang Windows executables are implemented using the COFF symbol table (while officiallyCOFF debugging information [for executable] is deprecated“). The Golang COFF symbol implementation is pretty liberal: symbols’ type is set to a default value — i.e. there is no clear distinction between code and data.

As another example, Windows PE read-only data section “.rdata” has been defined as executable in past Go versions.

Interestingly, Golang compiler internally uses pseudo assembly instructions (with architecture-specific registers). For example, here is a snippet of pseudo-code for ARM (operands are ordered with source first):

MOVW $go.string."hello, world\n"(SB), R0
MOVW R0, 4(R13)
MOVW $13, R0
MOVW R0, 8(R13)
CALL "".dummyFunc(SB)
MOVW.P 16(R13), R15


These pseudo-instructions could not be understood by a classic ARM assembler (e.g. there is no CALL instruction on ARM). Here are the disassembled ARM instructions from the corresponding binary:

LDR R0, #451404h // "hello, world\n" address
STR R0, [SP, #4]
MOV R0, #13
STR R0, [SP, #8]
BL main.dummyFunc
LDR PC, [SP], #16

Notice how the same pseudo-instruction MOVW got converted either as STR or MOV machine instructions. The use of pseudo-assembly comes from Plan9, and allows Golang assembler parser to easily handle all architectures: the only architecture-specific step is the selection of machine instructions (more details here).

6. Golang uses by default a stack-only calling convention.

Let’s illustrate that with the following diagram, showing the stack’s state when a routine with two integer parameters a and b, and two return values — declared in Go as “func myRoutine(a int, b int) (int, int)” — is called:

Fig. 3: Simplified stack view (stack grows downward), when a routine with two parameters and two return values is called . The return values are reserved slots for the callee.

It is the caller’s responsibilities to reserve space for the callees’ parameters and returned values, and to free it later on.

Note that Golang’s calling convention situation might soon change: since version 1.12, several calling conventions can coexist — the stack-only calling convention remaining the default one for backward compatibility reasons.

7. Golang executables are usually statically-linked, i.e. do not rely on external dependencies 3. In particular they embed a pretty large runtime environment. Consequently, Golang binaries tend to be large: for example, a “hello world” program compiled with Golang 1.13 is around 1.5MB with its symbols stripped.

8. Golang executables embed lots of symbolic information:

  • Debug symbols, implemented as DWARF symbols. These can be stripped at compilation time (command-line option -ldflags "-w") .
  • Classic symbols for each executable file format (PE/ELF/Mach-O). These can be stripped at compilation time (command-line option -ldflags "-s").
  • Go-specific metadata, including for example all functions’ entry points and names, and complete type information. These metadata cannot (easily) be stripped, because Golang runtime needs them: for example, functions’ information are needed to walk the stack for errors handling or for garbage collection, while types information serve for runtime type checks.

Of course, Go-specific metadata are very good news for reverse engineers, and parsing these will be one of the purpose of the JEB’s Python extension described in this blog post.

Making JEB Great for Golang

Current Status

What happens when opening a Golang executable in JEB? Let’s start from the usual “hello world” example:

package main

import "fmt"

func main() {
	fmt.Printf("hello, world\n")
}

If we compile it for as a Windows x64 PE file, and open it in JEB, we can notice that its code has only been partially disassembled. Unexplored memory areas can indeed be seen next to code areas in the native navigation bar (right-side of the screen by default):

Fig.4: Navigation bar for Golang PE file
(blue is code, green is data, grey represents area without any code or data)

We can confirm that the grey areas surrounding the blue areas are code, by manually disassembling them (hotkey ‘C’ by default).

Why did JEB disassembler miss this code? As can be seen in the Notifications window, the disassembler used a CONSERVATIVE strategy, meaning that it only followed safe control flow relationships (i.e. branches with known targets) 4.

Because Go runtime calls most native routines indirectly, in particular when creating goroutines, JEB disassembler finds little reliable control flow relationships, explaining why some code areas remain unexplored.

Before going on, let’s take a look at the corresponding Linux executable, which we can obtain simply by setting environment variable $GOOS to linux before compiling. Opening the resulting ELF file in JEB brings us in a more positive situation:

Fig. 5: Navigation bar for Golang ELF file
(blue is code, green is data, grey represents area without any code or data)

Due to the use by default of AGGRESSIVE strategy for disassembling ELF files, JEB disassembler found the whole code area (all code sections were linearly disassembled). In particular this time we can see our main routine, dubbed main.main by the compiler:

Fig. 6: Extract of main.main routine’s disassembly

Are data mixed with code in Golang executables? If yes, that would make AGGRESSIVE disassembly a risky strategy. At this moment (version 1.13 with default Go compiler), this does not seem to be the case:

– Data are explicitly stored in different sections than code, on PE and ELF.

Switch statements are not implemented with jumptables — a common case of data mixed with code, e.g. in Visual Studio or GCC ARM. Note that Golang provides several switch-like statements, as the select statement or the type switch statement.

As anything Golang related, the situation might change in future releases (for example, there is still an open discussion to implement jumptables for switch).

Yet, there is still something problematic in our ELF disassembly: the “hello world” string was not properly defined. Following the reference made by LEA instruction in the code, we reach a memory area where many strings have indeed been misrepresented as 1-byte data items:

Fig. 7: Dump of the memory area containing strings. Only the first byte of the strings is defined.

Now that we have a better idea of JEB’s current status, we are going to explain how we extended it with a Python script to ease Golang analysis.

Finding and Naming Routines

The first problem on our road is the incomplete control flow, specially on Windows executables. At first, it might seem that PE files disassembly could be improved simply by setting disassembler’s strategy to AGGRESSIVE, exactly as for ELF files. While it might be an acceptable quick solution, we can actually improve the control flow in a much safer way by parsing Go metadata.

Parsing “Pc Line Table”

Since version 1.2, Golang executables embed a structure called “pc line table”, also known as pclntab. Once again, this structure (and its name) is an heritage from Plan9, where its original purpose was to associate a program counter value (“pc”) to another value (e.g. a line number in the source code).

The structure has evolved, and now contains a function symbol table, which stores in particular the entry points and names of all routines defined in the binary. The Golang runtime uses it in particular for stack unwinding, call stack printing and garbage collection.

In others words, pclntab cannot be easily stripped from a binary, and provide us a reliable way to improve our disassembler’s control flow!

First, our script locates pclntab structure (refer to locatePclntab() for the details):

  # non-stripped binary: use symbol
  if findSymbolByName(golangAnalyzer.codeContainerUnit, 'runtime.pclntab') != None:
      pclntabAddress = findSymbolByName(..., 'runtime.pclntab')

  # stripped binary
  else:
    # PE: brute force search in .rdata. or in all binary if section not present
    if [...].getFormatType() == WellKnownUnitTypes.typeWinPe
    [...]

    # ELF: .gopclntab section if present, otherwise brute force search
    elif [...].getFormatType() == WellKnownUnitTypes.typeLinuxElf:
    [...]

On stripped binaries (i.e. without classic symbols), we search memory for the magic constant 0xFFFFFFFB starting pclntab, and then runs some checks on the possible fields. Note that it is usually easier to parse Golang ELF files, as important runtime structures are stored in distinct sections.

Second, we parse pclntab and use its function symbol table to disassemble all functions and rename them:

[...]
# enqueue function entry points from pclntab and register their names as labels
for myFunc in pclntab.functionSymbolTable.values():
 nativeCodeAnalyzer.enqueuePointerForAnalysis(EntryPointDescription(myFunc.startPC), INativeCodeAnalyzer.PERMISSION_FORCEFUL)
 if rename:
   labelManager.setLabel(myFunc.startPC, myFunc.name, True, True, False)

# re-run disassembler with the enqueued entry points
self.nativeCodeAnalyzer.analyze()

Running this on our original PE file allows to discover all routines, and gives the following navigation bar:

Fig. 8: Navigation bar for Golang PE file after running the script
(blue is code, green is data, grey represents area without any code or data)

Interestingly, a few Golang’s runtime routines provide hints about the machine used to compile the binary, for example:

runtime.schedinit(): references Go’s build version. Knowing the exact version allows to investigate possible script parsing failures (as some internal structures might change depending on Go’s version).

runtime.GOROOT(): references Go’s installation folder used during compilation. This might be useful for malware tracking.

These routines are present only if the rest of the code relies on them. If it is the case, FunctionsFinder module highlights them in JEB’s console, and the user can then examine them.

The Remaining Unnamed Routines

Plot twist! A few routines found by the disassembler remain nameless even after FunctionsFinder module parsed pclntab structure. All these routines are adjacent in memory and composed of the same instructions, for example:

Fig. 9: Series of unnamed routines in x86

Long story short, these routines are made for zeroing or copying memory blobs, and are part of two large routines respectively named duff_zero and duff_copy.

These large routines are Duff’s devices made for zeroing/copying memory. They are generated as long unrolled loops of machine instructions. Depending on how many bytes need to be copied/zeroed the compiler will call directly on a particular instruction. For each of these calls, a nameless routine will then be created by the disassembler.

DuffDevicesFinder module identifies such routines with pattern matching on assembly instructions. By counting the number of instructions, it then renames them duff_zero_N/duff_copy_N, with N the number of bytes zeroed/copied.

Source Files

Interestingly, pclntab structure also stores original source filespaths. This supports various Golang’s runtime features, like printing meaningful stack traces, or providing information on callers from a callee (see runtime.Caller()). Here is an example of a stack trace obtained after a panic():

PANIC
goroutine 1 [running]:
main.main()
        C:/Users/[REDACTED]/go/src/hello_panic/hello_panic.go:4 +0x40

The script extracts the list of source files and print them in logs.

Strings Recovery

The second problem we initially encountered in JEB was the badly defined strings.

What Is a String?

Golang’s strings are stored at runtime in a particular structure called StringHeader with two fields:

type StringHeader struct {
        Data uintptr       // string value
        Len  int           // string size
}

The string’s characters (pointed by the Data field) are stored in data sections of the executables, as a series of UTF-8 encoded characters without null-terminators.

Dynamic Allocation

StringHeader structures can be built dynamically, in particular when the string is local to a routine. For example:

Fig. 10: StringHeader instantiation in x86

By default JEB disassembler defines a 1-byte data item (gvar_4AFB52 in previous picture) for the string value, rather than a proper string, because:

  • As the string value is referenced only by LEA instruction, without any hints on the data type (LEA is just loading an “address”), the disassembler cannot type the pointed data accordingly.
  • The string value does not end with a null-terminator, making JEB’s standard strings identification algorithms unable to determine the string’s length when scanning memory.

To find these strings, StringsBuilder module searches for the particular assembly instructions usually used for instantiating StringHeader structures (for x86/x64, ARM and MIPS architectures). We can then properly define a string by fetching its size from the assembly instructions. Here is an example of recovered strings:

Of course, this heuristic will fail if different assembly instructions are employed to instantiate StringHeader structures in future Golang compiler release (such change happened in the past, e.g. x86 instructions changed with Golang 1.8).

Static Allocation

StringHeader can also be statically allocated, for example for global variables; in this case the complete structure is stored in the executable. The code referencing such strings employs many different instructions, making pattern matching not suitable.

To find these strings, we scan data sections for possible StringHeader structures (i.e. a Data field pointing to a printable string of size Len). Here is an example of recovered structures:

Fig. 13: Reconstructed StringHeader

The script employs two additional final heuristics, which scan memory for printable strings located between two already-defined strings. This allows to recover strings missed by previous heuristics.

When a small local string is used for comparison only, no StringHeader structure gets allocated. The string comparison is done directly by machine instructions; for example, CMP [EAX], 0x64636261 to compare with “abcd” on x86.

Types Recovery

Now that we extended JEB to handle the “basics” of Golang analysis, we can turn ourselves to what makes Golang-specific metadata particularly interesting: types.

Golang executables indeed embed descriptions for all types manipulated in the binary, including in particular those defined by developers.

To illustrate that, let’s compile the following Go program, which defines a Struct (Golang’s replacement for classes) with two fields:

package main

type DummyStruct struct{
	boolField bool
	intField int
}

func dummyFunc(s DummyStruct) int{
	return 13 * s.intField
}

func main(){
	s := DummyStruct{boolField: true, intField:37}
	t := dummyFunc(s)
	t += 1
}

Now, if we compile this source code as a stripped x64 executable, and analyze it with TypesBuilder module, the following structure will be reconstructed:

Fig. 14: Structure reconstructed by TypesBuilder, as seen in JEB’s type editor

Not only did we get the structure and its fields’ original names, but we also retrieved the structure’s exact memory layout, including the padding inserted by the compiler to align fields. We can confirm DummyStruct‘s layout by looking at its initialization code in main():

Fig. 15: DummyStruct initialization: intField starts at offset 8, as extracted from type information

Why So Much Information?

Before explaining how TypesBuilder parses types information, let’s first understand why these information are needed at all. Here are a few Golang features that rely on types at runtime:

  • Dynamic memory allocation, usually through a call to runtime.newobject(), which takes in input the description of the type to be allocated
  • Dynamic type checking, with statements like type assertions or type switches. Roughly speaking, two types will be considered equals if they have the same type descriptions.
  • Reflection, through the built-in package reflect, which allows to manipulate objects of unknown types from their type descriptions

Golang type descriptions can be considered akin to C++ Run-Time Type Information, except that there is no easy way to prevent their generation by the compiler. In particular, even when not using reflection, types descriptors remain present.

For reverse engineers, this is another very good news: knowing types (and their names) will help understanding the code’s purpose.

Of course, it is certainly doable to obfuscate types, for example by giving them meaningless names at compilation. We did not find any malware using such technique.

What Is A Type?

In Golang each type has an associated Kind, which can take one the following values:

const (
    Invalid Kind = iota
    Bool
    Int
    Int8
    Int16
    Int32
    Int64
    Uint
    Uint8
    Uint16
    Uint32
    Uint64
    Uintptr
    Float32
    Float64
    Complex64
    Complex128
    Array
    Chan
    Func
    Interface
    Map
    Ptr
    Slice
    String
    Struct
    UnsafePointer
)

Alongside types usually seen in programming languages (integers, strings, boolean, maps, etc), one can notice some Golang-specific types:

  • Array: fixed-size array
  • Slice: variable-size view of an Array
  • Func: functions; Golang’s functions are first-class citizens (for example, they can be passed as arguments)
  • Chan: communication channels for goroutines
  • Struct: collection of fields, Golang’s replacement for classes
  • Interface: collection of methods, implemented by Structs

The type’s kind is the type’s “category”; what identifies the type is its complete description, which is stored in the following rtype structure:

    type rtype struct {
      size       uintptr
      ptrdata    uintptr  // number of bytes in the type that can contain pointers
      hash       uint32   // hash of type; avoids computation in hash tables
      tflag      tflag    // extra type information flags
      align      uint8    // alignment of variable with this type
      fieldAlign uint8    // alignment of struct field with this type
      kind       uint8    // enumeration for C
      alg        *typeAlg // algorithm table
      gcdata     *byte    // garbage collection data
      str        nameOff  // string form
      ptrToThis  typeOff  // type for pointer to this type, may be zero
    }

The type’s name is part of its description (str field). This means that, for example, one could define an alternate integer type with type myInt int, and myInt and int would then be distinct types (with distinct type descriptors, each of Int kind). In particular, assigning a variable of type myInt to a variable of type int would necessitate an explicit cast.

The rtype structure only contains general information, and for non-primary types (Struct, Array, Map,…) it is actually embedded into another structure (as the first field), whose remaining fields provides type-specific information.

For example, here is strucType, the type descriptor for types with Struct kind:

    type structType struct {
      rtype
      pkgPath name
      fields  []structField
    }

Here, we have in particular a slice of structField, another structure describing the structure fields’ types and layout.

Finally, types can have methods defined on them: a method is a function with a special argument, called the receiver, which describes the type on which the methods applies. For example, here is a method on MyStruct structure (notice receiver’s name after func):

func (myStruct MyStruct) method1() int{
    ...
}

Where are methods’ types stored? Into yet another structure called uncommonType, which is appended to the receiver’s type descriptor. In other words, a structure with methods will be described by the following structure:

type UncommonStructType struct {
      rtype
      structType
      uncommonType
}

Here is an example of such structure, as seen in JEB after running TypesBuilder module:

Fig. 16: Type descriptor for a structure with methods:
StrucType (with embedded rtype, and referencing StructField),
followed by UncommonType (referencing MethodType)

Parsing type descriptors can therefore be done by starting from rtype (present for all types), and adding wrapper structures around it, if needed. Properly renaming type descriptors in memory greatly helps the analysis, as these descriptors are passed as arguments to many runtime routines (as we will see in StealthWorker’s malware analysis).

The final step is to transform the type descriptors into the actual types — for example, translating a structType into the memory representation of the corresponding structure –, which can then be imported in JEB types. For now, TypesBuilder do this final import step for named structures only.

Describing in details all Golang’s type descriptors is out-of-scope for this blog. Refer to TypesBuilder module for gory details.

Locating Type Descriptors

The last question we have to examine is how to actually locate type descriptors in Golang binaries. This starts with a structure called moduledata, whose purpose is to “record information about the layout of the executable“:

    type moduledata struct {
      pclntable    []byte
      ftab         []functab
      filetab      []uint32
      findfunctab  uintptr
      minpc, maxpc uintptr

      text, etext           uintptr
      noptrdata, enoptrdata uintptr
      data, edata           uintptr
      bss, ebss             uintptr
      noptrbss, enoptrbss   uintptr
      end, gcdata, gcbss    uintptr
      types, etypes         uintptr

      textsectmap []textsect
      typelinks   []int32 // offsets from types
      itablinks   []*itab

      [...REDACTED...]
    }

This structure defines in particular a range of memory dedicated to storing type information (from types to etypes). Then, typelink field stores offsets in the range where type descriptors begin.

So first we locate moduledata, either from a specific symbol for non-stripped binaries, or through a brute-force search. For that, we search for the address of pclntab previously found (first moduledata field), and then apply some checks on its fields.

Second, we start the actual parsing of the types range, which is a recursive process as some types reference others types, during which we apply the type descriptors’ structures.

There is no backward compatibility requirement on runtime’s internal structures — as Golang executables embed their own runtime. In particular, moduledata and type descriptions are not guaranteed to stay backward compatible with older Golang release (and they were already largely modified since their inception).

In others words, TypesBuilder module’s current implementation might become outdated in future Golang releases (and might not properly work on older versions).

Use-Case: StealthWorker

We are now going to dig into a malware dubbed StealthWorker. This malware infects Linux/Windows machines, and mainly attempts to brute-force web platforms, such as WordPress, phpMyAdmin or Joomla. Interestingly, StealthWorker heavily relies on concurrency, making it a target of choice for a first analysis.

The sample we will be analyzing is a x86 Linux version of StealthWorker, version 3.02, whose symbols have been stripped (SHA1: 42ec52678aeac0ddf583ca36277c0cf8ee1fc680)

Reconnaissance

Here is JEB’s console after disassembling the sample and running the script with all modules activated (FunctionsFinder, StringsBuilder, TypesBuilder, DuffDevicesFinder, PointerAnalyzer):

>>> Golang Analyzer <<<
> pclntab parsed (0x84B79C0)
> first module data parsed (0x870EB20)
> FunctionsFinder: 9528 function entry points enqueued (and renamed)
> FunctionsFinder: running disassembler... OK
 > point of interest: routine runtime.GOROOT (0x804e8b0): references Go root path of developer's machine (sys.DefaultGoroot)
 > point of interest: routine runtime.schedinit (0x8070e40): references Go version (sys.TheVersion)
> StringsBuilder: building strings... OK (4939 built strings)
> TypesBuilder: reconstructing types... OK (5128 parsed types - 812 types imported to JEB - see logs)
> DuffDevicesFinder: finding memory zero/copy routines... OK (93 routines identified)
> PointerAnalyzer: 5588 pointers renamed
> see logs (C:\[REDACTED]\log.txt)

Let’s start with some reconnaissance work:

  • The binary was compiled with Go version 1.11.4 (referenced in runtime.schedinit‘s code, as mentioned by the script’s output)
  • Go’s root path on developer’s machine is /usr/local/go (referenced by runtime.GOROOT‘s code)
  • Now, let’s turn to the reconstructed strings; there are too many to draw useful conclusions at this point, but at least we got an interesting IP address (spoiler alert: that’s the C&C’s address):
Fig. 17: Extract of StealthWorker’s strings
as seen in JEB after running the script
  • More interestingly, the list of source files extracted from pclntab (outputted in the script’s log.txt) shows a modular architecture:
> /home/user/go/src/AutorunDropper/Autorun_linux.go
> /home/user/go/src/Check_double_run/Checker_linux.go
> /home/user/go/src/Cloud_Checker/main.go
> /home/user/go/src/StealthWorker/WorkerAdminFinder/main.go
> /home/user/go/src/StealthWorker/WorkerBackup_finder/main.go
> /home/user/go/src/StealthWorker/WorkerBitrix_brut/main.go
> /home/user/go/src/StealthWorker/WorkerBitrix_check/main.go
> /home/user/go/src/StealthWorker/WorkerCpanel_brut/main.go
> /home/user/go/src/StealthWorker/WorkerCpanel_check/main.go
> /home/user/go/src/StealthWorker/WorkerDrupal_brut/main.go
> /home/user/go/src/StealthWorker/WorkerDrupal_check/main.go
> /home/user/go/src/StealthWorker/WorkerFTP_brut/main.go
> /home/user/go/src/StealthWorker/WorkerFTP_check/main.go
> /home/user/go/src/StealthWorker/WorkerHtpasswd_brut/main.go
> /home/user/go/src/StealthWorker/WorkerHtpasswd_check/main.go
> /home/user/go/src/StealthWorker/WorkerJoomla_brut/main.go
> /home/user/go/src/StealthWorker/WorkerJoomla_check/main.go
> /home/user/go/src/StealthWorker/WorkerMagento_brut/main.go
> /home/user/go/src/StealthWorker/WorkerMagento_check/main.go
> /home/user/go/src/StealthWorker/WorkerMysql_brut/main.go
> /home/user/go/src/StealthWorker/WorkerOpencart_brut/main.go
> /home/user/go/src/StealthWorker/WorkerOpencart_check/main.go
> /home/user/go/src/StealthWorker/WorkerPMA_brut/main.go
> /home/user/go/src/StealthWorker/WorkerPMA_check/WorkerPMA_check.go
> /home/user/go/src/StealthWorker/WorkerPostgres_brut/main.go
> /home/user/go/src/StealthWorker/WorkerSSH_brut/main.go
> /home/user/go/src/StealthWorker/WorkerWHM_brut/main.go
> /home/user/go/src/StealthWorker/WorkerWHM_check/main.go
> /home/user/go/src/StealthWorker/WorkerWP_brut/main.go
> /home/user/go/src/StealthWorker/WorkerWP_check/main.go
> /home/user/go/src/StealthWorker/Worker_WpInstall_finder/main.go
> /home/user/go/src/StealthWorker/Worker_wpMagOcart/main.go
> /home/user/go/src/StealthWorker/main.go

Each main.go corresponds to a Go package, and its quite obvious from the paths that each of them targets a specific web platform. Moreover, there seems to be mainly two types of packages: WorkerTARGET_brut, and WorkerTARGET_check.

There are no information regarding the time of compilation in Golang executables. In particular executables’ timestamps have been set to a fixed value at compilation, in order to always generate the same executable from a given input.

  • Let’s dig a bit further by looking at main package, which is where execution begins; here are its routines with pretty informative names:
Fig. 18: main’s package routines

Additionally there is a series of type..hash* and type..eq* methods for main package:

Fig. 19: Hashing methods (automatically generated for complex types)

These methods are automatically generated for types equality and hashing, and therefore their presence indicates that non-trivial custom types are used in main package (as we will see below).

We can also examine main.init() routine. The init() routine is generated for each package by Golang’s compiler to initialize others packages that this package relies on, and the package’s global variables:

Fig. 20: Packages initialization from main.init()

Along the previously seen packages, one can notice some interesting custom packages:

  • github.com/remeh/sizedwaitgroup: a re-implementation of Golang’s WaitGroup — a mechanism to wait for goroutines termination –, but with a limit in the amount of goroutines started concurrently. As we will see, StealthWorker’s developer takes special care to not overload the infected machine.
  • github.com/sevlyar/go-daemon: a library to write daemon processes in Go.

Golang packages’ paths are part of a global namespace, and it is considered best practice to use GitHub’s URLs as package paths for external packages to avoid conflicts.

Concurrent Design

In this blog, we will not dig into each StealthWorker’s packages implementation, as it has been already been done several times. Rather, we will focus on the concurrent design made to organize the work between these packages.

Let’s start with an overview of StealthWorker’s architecture:

Fig. 21: StealthWorker’s design overview

At first, a goroutine executing getActiveProject() regularly retrieves a list of “projects” from the C&C server. Each project is identified by a keyword (wpChk for WordPress checker, ssh_b for SSH brute-forcer, etc).

From there, the real concurrent work begins: five goroutines executing PrepareTaskFunc() retrieve a list of targets for each project, and then distribute work to “Workers”. There are several interesting quirks here:

  • To allow PrepareTaskFunc() goroutines to communicate with Worker() goroutines, a Channel is instantiated:
Fig. 22: Channel’s instantiation

As can be seen from the channel type descriptor — parsed and renamed by the script –, the Channel is made for objects of type interface {}, the empty interface. In others words, objects of any type can be sent and received through it (because “direction:both”).

PrepareTaskFunc() will then receive from the C&C server a list of targets for a given project — as JSON objects –, and for each target will instantiate a specific structure. We already noticed these structures when looking at main package’s routines, here are their reconstructed form in the script’s logs:

> struct main.StandartBrut (4 fields):
    - string Host (offset:0)
    - string Login (offset:8)
    - string Password (offset:10)
    - string Worker (offset:18)

> struct main.StandartChecker (5 fields):
    - string Host (offset:0)
    - string Subdomains (offset:8)
    - string Subfolder (offset:10)
    - string Port (offset:18)
    - string Worker (offset:20)

> struct main.WPBrut (5 fields):
    - string Host (offset:0)
    - string Login (offset:8)
    - string Password (offset:10)
    - string Worker (offset:18)
    - int XmlRpc (offset:20)

> struct main.StandartBackup (7 fields):
    - string Host (offset:0)
    - string Subdomains (offset:8)
    - string Subfolder (offset:10)
    - string Port (offset:18)
    - string FileName (offset:20)
    - string Worker (offset:28)
    - int64 SLimit (offset:30)

> struct main.WpMagOcartType (5 fields):
    - string Host (offset:0)
    - string Login (offset:8)
    - string Password (offset:10)
    - string Worker (offset:18)
    - string Email (offset:20)

> struct main.StandartAdminFinder (6 fields):
    - string Host (offset:0)
    - string Subdomains (offset:8)
    - string Subfolder (offset:10)
    - string Port (offset:18)
    - string FileName (offset:20)
    - string Worker (offset:28)

> struct main.WPChecker (6 fields):
    - string Host (offset:0)
    - string Subdomains (offset:8)
    - string Subfolder (offset:10)
    - string Port (offset:18)
    - string Worker (offset:20)
    - int Logins (offset:28)

Note that all structures have Worker and Host fields. The structure (one per target) will then be sent through the channel.

  • On the other side of the channel, a Worker() goroutine will fetch the structure, and use reflection to generically process it (i.e. without knowing a priori which structure was sent):
Fig. 23: StealthWorker’s use of reflection to retrieve a field from an unknown structure

Finally, depending on the value in Worker field, the corresponding worker’s code will be executed. There are two types of workers: brute-forcing workers, which try to login into the target through a known web platform, and checking workers, which test the existence of a certain web platform on the target.

From a design point-of-view, there is a difference between the two types of workers: checking workers internally relies on another Channel, in which the results are going to be written, and fetched by another goroutine named saveGood(), which reports to the C&C. On the other hand, brute-forcing workers do their task and directly report to the C&C server.

  • Interestingly, the maximum number of Worker() goroutines can be configured by giving a parameter to the executable (preceded by the argument dev). According to the update mechanism, it seems that the usual value for this maximum is 400. Then, the previously mentioned SizedWaitGroup package serves to ensure the number of goroutines stay below this value:
Fig. 24: Worker’s creation loop
SizeWaitGroup.Add() is blocking when the maximum number of goroutines has been reached. Each main.Worker() will release its slot when terminating.

We can imagine that the maximum amount of workers is tuned by StealthWorker’s operators to lower the risk of overloading infected machines (and drawing attention).

There are two additional goroutines, respectively executing routines KnockKnock() and CheckUpdate(). Both of them simply run specific tasks concurrently (and infinitely): the former sends a “ping” message to the C&C server, while the latter asks for an updated binary to execute.

What’s Next? Decompilation!

The provided Python script should allow users to properly analyze Linux and Windows Golang executables with JEB. It should also be a good example of what can be done with JEB API to handle “exotic” native platforms.

Regarding Golang reverse engineering, for now we remained at disassembler level, but decompiling Golang native code to clean pseudo-C is clearly a reachable goal for JEB. There are a few important steps to implement first, like properly handling Golang stack-only calling convention (with multiple return values), or generating type libraries for Golang runtime.

So… stay tuned for more Golang reverse engineering!

As usual, if you have questions, comments or suggestions, feel free to:

References

A few interesting reading for reverse engineers wanting to dig into Golang’s internals:

  1. The Golang compiler was originally inherited from Plan9 and was written in C, in order to solve the bootstrapping problem (how to compile a new language?), and also to “easily” implement segmented stacks — the original way of dealing with goroutines stack. The process of translating the original C compiler to Golang for release 1.5 has been described in details here and here.
  2. There are alternate compilers, e.g. gccgo and a gollvm
  3. Golang also allows to compile ‘modules’, which can be loaded dynamically. Nevertheless, for malware writers statically-linked executables remain the usual choice.
  4. Readers interested in the internals of JEB disassembler engine should refer to our recent REcon presentation
